Notes
Child Safety Seat Tether Anchor: Notes

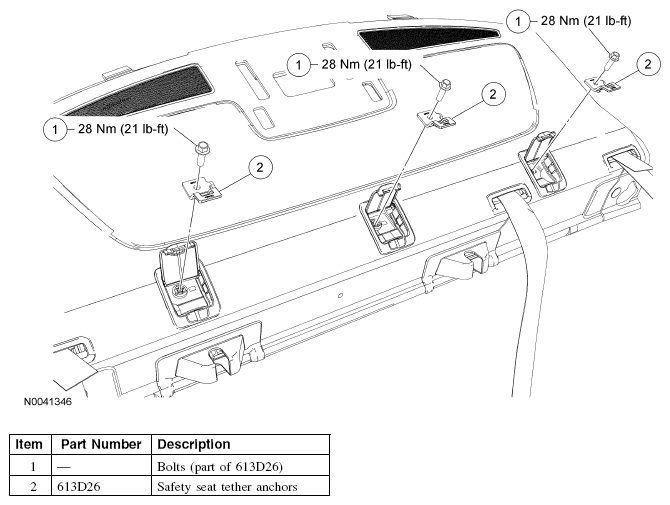

Fig 1: Child Safety Seat Tether Anchor Replacement Components With Torque Specifications
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
