Removal and Installation

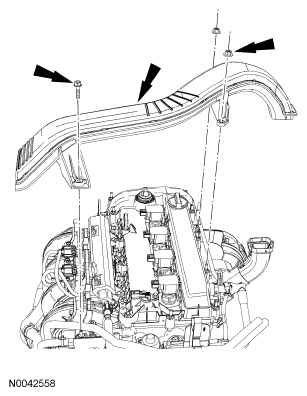

- Remove the 2 nuts, the bolt and the generator air inlet duct.
- To install, tighten to 6 Nm (53 lb-in).
- Disconnect the 4 ignition coil-on-plug electrical connectors.
- Remove the 4 bolts and the ignition coil-on-plugs.
- To install, tighten to 10 Nm (89 lb-in).
- To install, reverse the removal procedure.
- Apply a small amount of dielectric grease to the inside of the ignition coil-on-plug boots before attaching to the spark plugs.
NOTE:
When removing the ignition coil-on-plugs, a slight twisting motion will break the seal and ease removal.
