Safety Belt Retractor - Third Row, Center: Notes

SPECIAL TOOL(S)

G04663653Courtesy of FORD MOTOR CO.
 Torx Bit, Safety Belt Bolt
501-010 (T77L-2100-A)

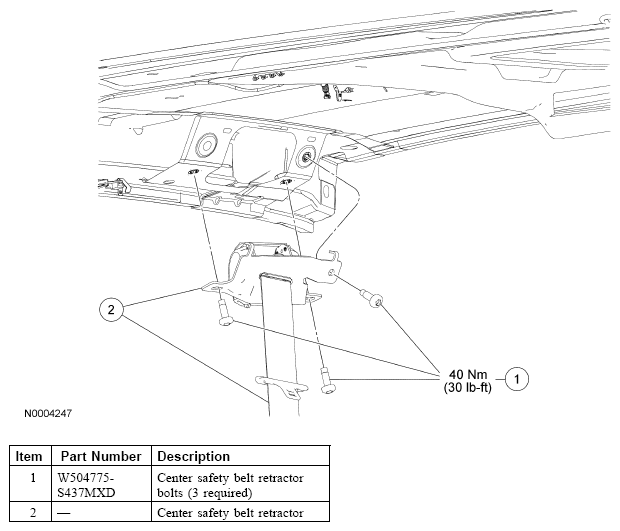

Fig 1: Safety Belt Retractor Replacement Components -- Third Row, Center With Torque Specification
G04663654Courtesy of FORD MOTOR CO.
