Multifunction Switch, Wiper/Washer Portion: Schematic

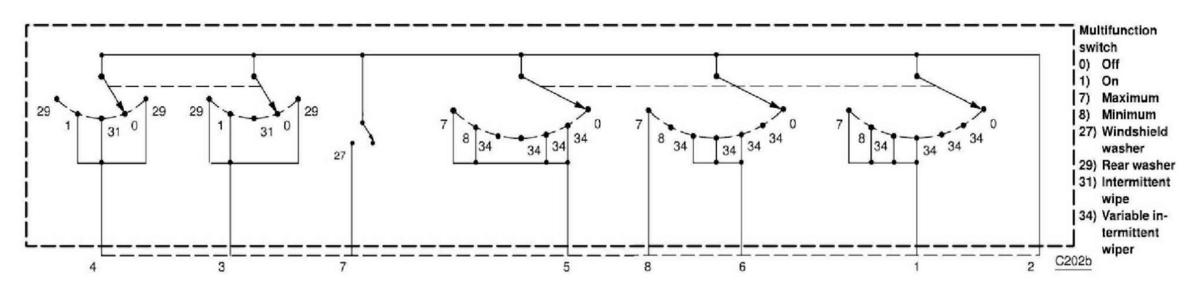

Fig 1: Multifunction Switch, Wiper/Washer Portion - Circuit Diagram

G04597217

Courtesy of FORD MOTOR CO.
