Door lock switch, driver side: Schematic

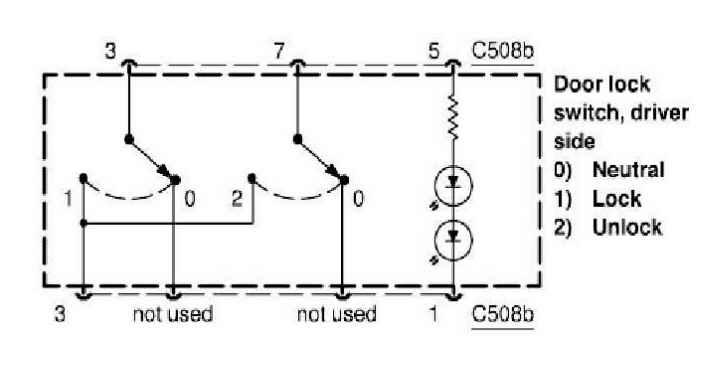

Fig 1: Door Lock Switch - Circuit Diagram (Driver Side)

G04597223

Courtesy of FORD MOTOR CO.

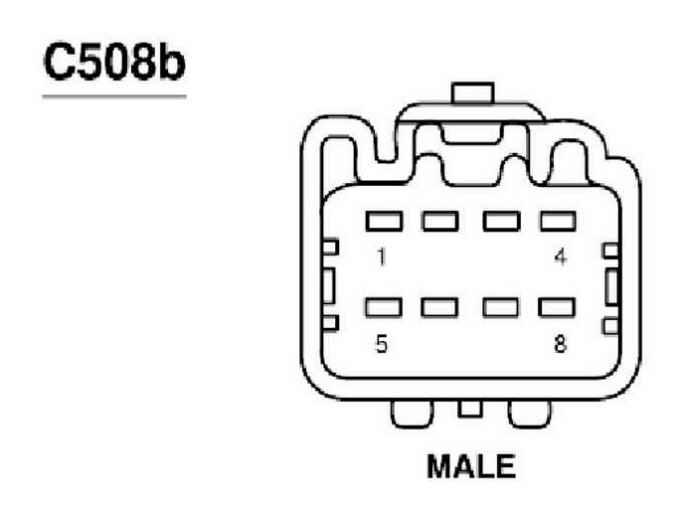

Fig 2: Identifying C508b Connector Terminals

G04597224

Courtesy of FORD MOTOR CO.
