Fuel Pump Module - Exploded View
Fuel Pump Module - Exploded View

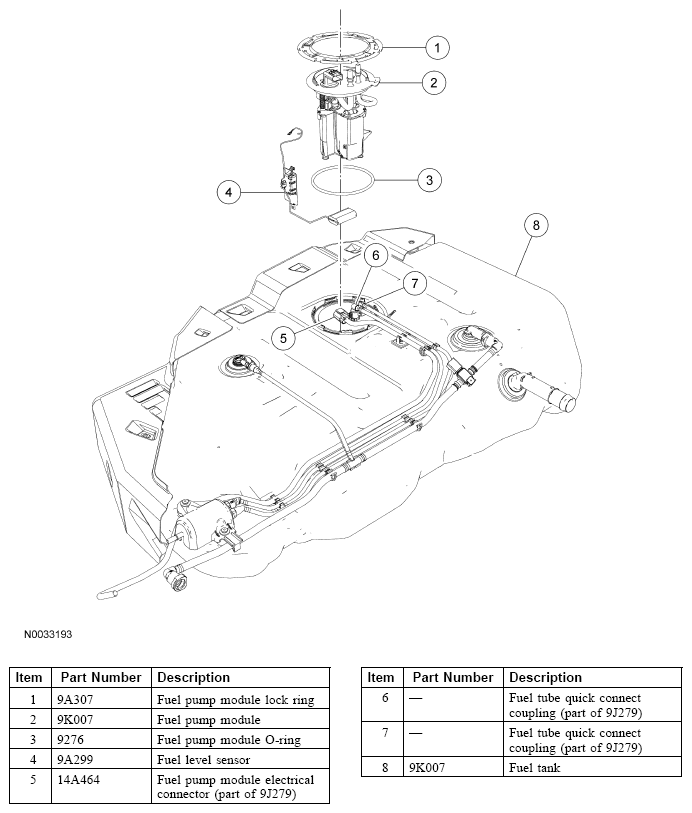

Fig 1: Exploded View Of Fuel Pump Module
Courtesy of FORD MOTOR CO.
For additional information, refer to the procedures in this article.
Courtesy of FORD MOTOR CO.
