Notes
Safety Canopy Module: Notes
NOTE:
Driver side shown, passenger similar.

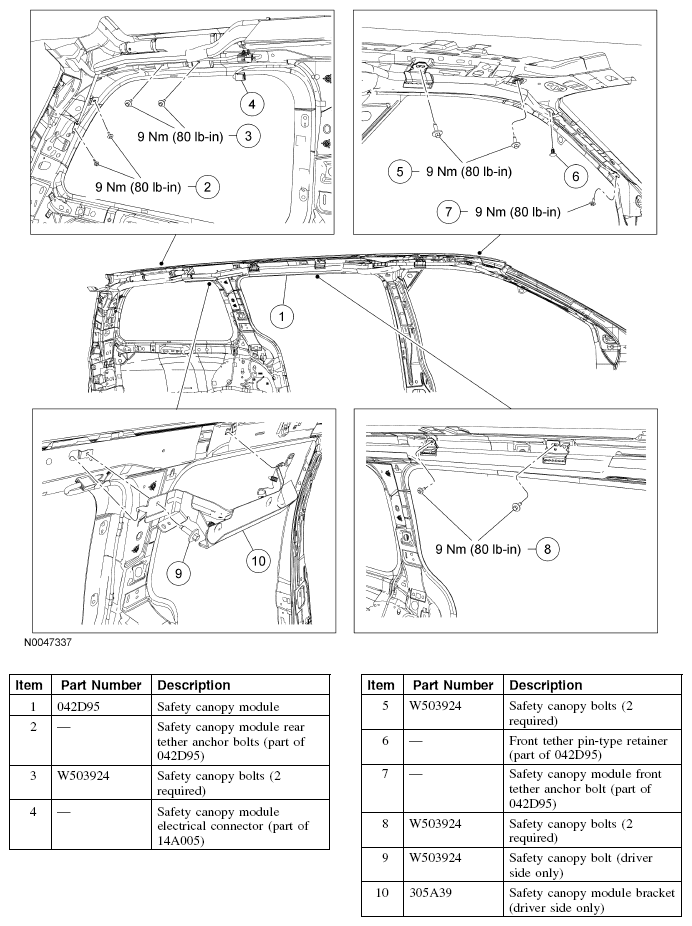

Fig 1: Safety Canopy Module Replacement Components With Torque Specifications
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
