Home >> Ford >> 2006 >> Freestar Base >> Repair and Diagnosis >> Restraints >> Air Bag, SRS >> Supplemental Inflatable Restraint System >> Removal And Installation >> Passenger Air Bag Module >> Notes

Passenger Air Bag Module: Notes

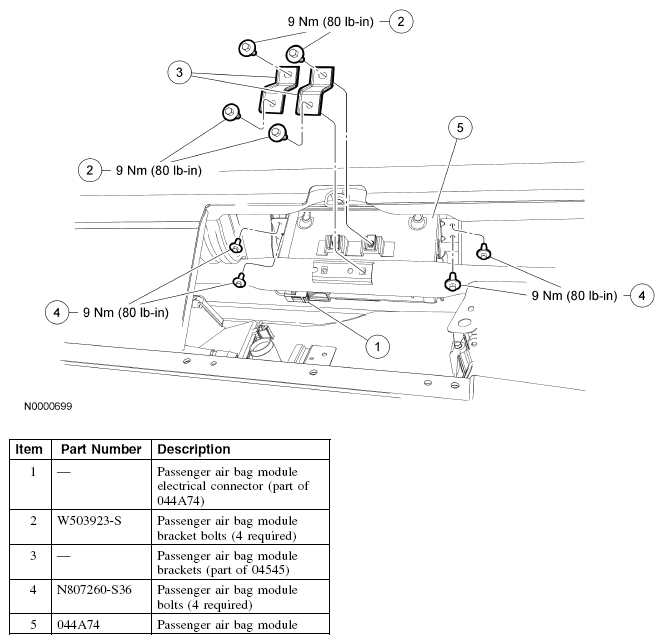

Fig 1: Passenger Air Bag Module Replacement Components With Torque Specifications

G04663933

Courtesy of FORD MOTOR CO.
