Occupant Classification Sensor - Service Kit: Notes

SPECIAL TOOL(S)

Courtesy of FORD MOTOR CO.

Worldwide Diagnostic System (WDS) Vehicle Communication Module (VCM) with appropriate adapters, or equivalent diagnostic tool

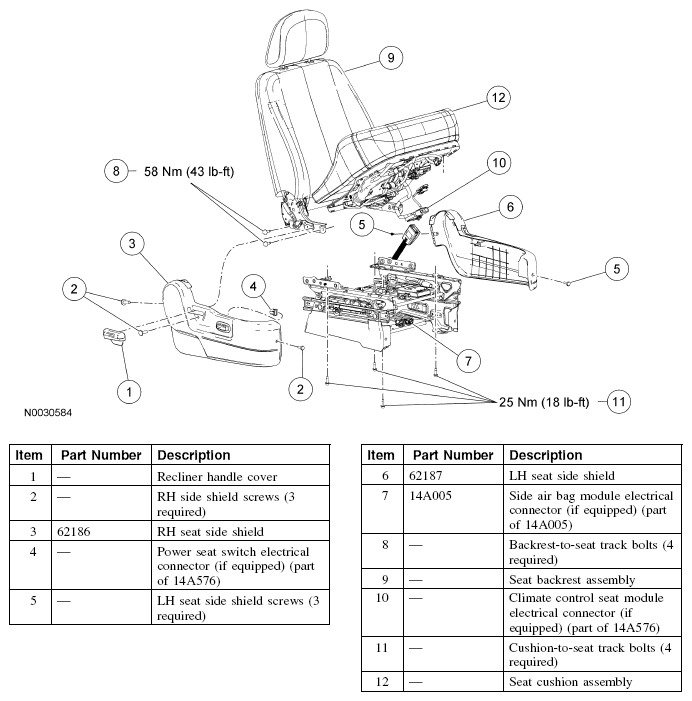

Fig 1: Occupant Classification Sensor - Service Kit Replacement Components (1 Of 2) With Torque Specifications

Courtesy of FORD MOTOR CO.

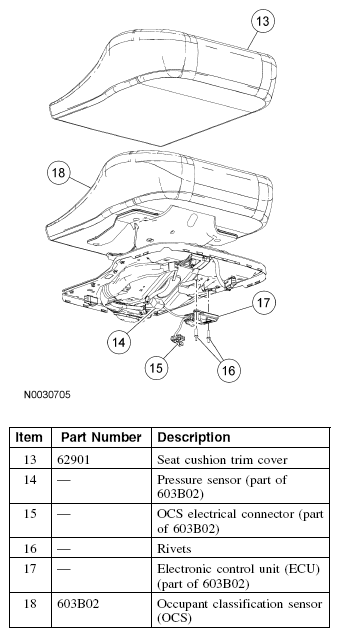

Fig 2: Identifying Occupant Classification Sensor - Service Kit Remove/Install Components (2 Of 2)

Courtesy of FORD MOTOR CO.
