Removal And Installation: Clockspring: Notes

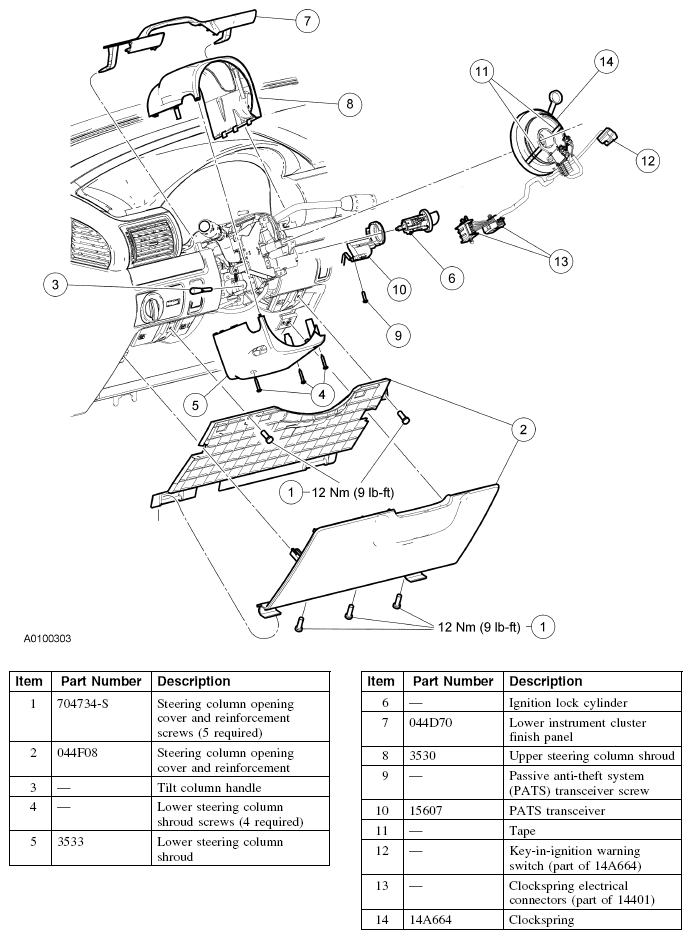

Fig 1: Clockspring Replacement Components With Torque Specifications

G04663891

Courtesy of FORD MOTOR CO.
