Removal and Installation

  1. With the vehicle in NEUTRAL, position it on a hoist. For additional information, refer to JACKING AND LIFTING .
  2. Remove the hood.
  3. Remove the cowl panel grille. For additional information, refer to FRONT END BODY PANELS .
  4. Disconnect the windshield wiper motor electrical connector.
    Fig 1: Locating Windshield Wiper Motor Electrical Connector
    G04004018Courtesy of FORD MOTOR CO.
  5. Remove the bolts and the cowl top panel.
    • To install, tighten to 6 Nm (53 lb-in).
      Fig 2: Locating Cowl Top Panel Bolts
      G04004019Courtesy of FORD MOTOR CO.
  6. Remove the 2 engine roll restrictor bolts and the engine roll restrictor.
    • To install, tighten to 63 Nm (46 lb-ft).
  7. Remove the transaxle support insulator nut.
    • To install, tighten to 90 Nm (66 lb-ft).
  8. Remove the LH engine mount nut.
    • To install, tighten to 90 Nm (66 lb-ft).
  9. Remove the RH engine mount nut.
    • To install, tighten to 90 Nm (66 lb-ft).
  10. Using the special tools, raise the engine.

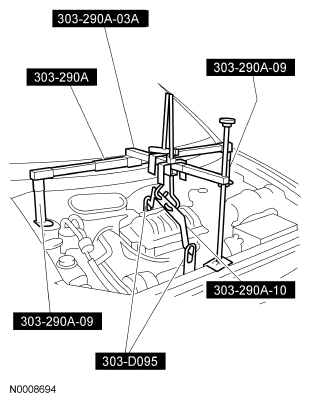

    Fig 3: Raising Engine Using Special Tools (303-290A), (303-290A-03A), (303-290A-09), (303-290A-10), And (303-D095)
    G04660424Courtesy of FORD MOTOR CO.
  11. Remove the RH engine mount bolt.
    • To install, tighten to 90 Nm (66 lb-ft).
  12. Remove the RH engine mount.
  13. To install, reverse the removal procedure.
