Crankshaft Runout

SPECIAL TOOL(S)

G04660203

Courtesy of FORD MOTOR CO.

Dial Indicator Gauge with Holding Fixture
100-002 (TOOL-4201-C) or equivalent

NOTE: Crankshaft main bearing journals must be within specifications before checking runout.

Use the Dial Indicator Gauge with Holding Fixture to measure the crankshaft runout.
- Refer to SPECIFICATIONS .
- Rotate the crankshaft and subtract the lowest dial indicator reading from the highest dial indicator reading to figure the crankshaft runout. If it is out of specification, install new components as necessary. Refer to the appropriate article for the procedure.

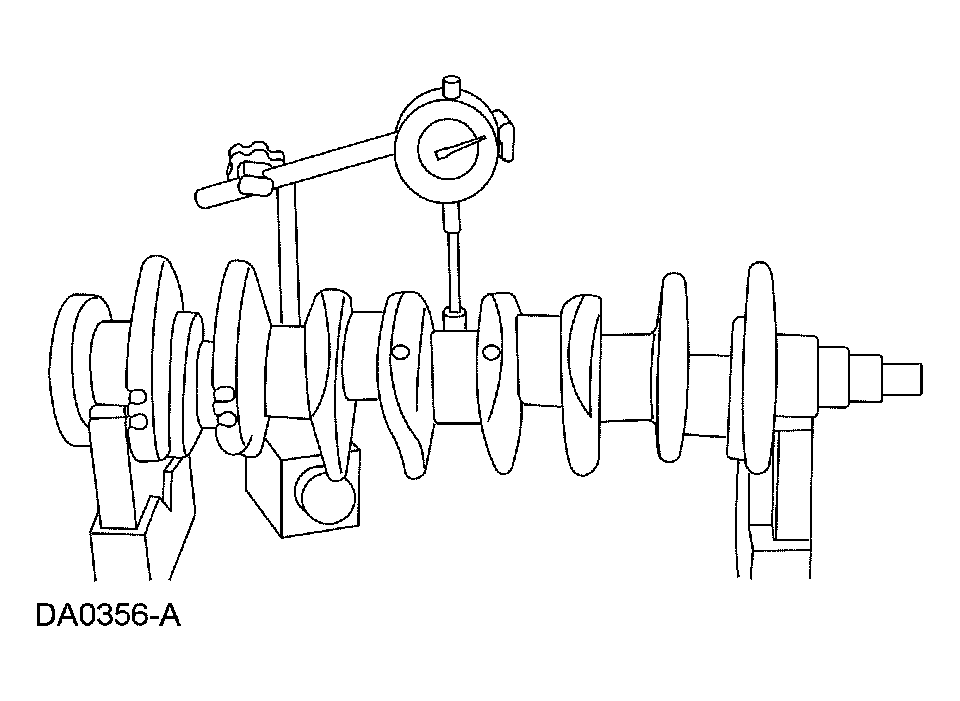

  Fig 1: Measuring Crankshaft Runout
  Courtesy of FORD MOTOR CO.
