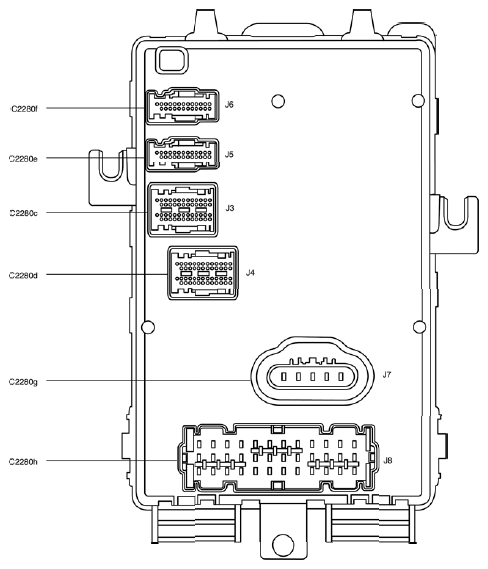

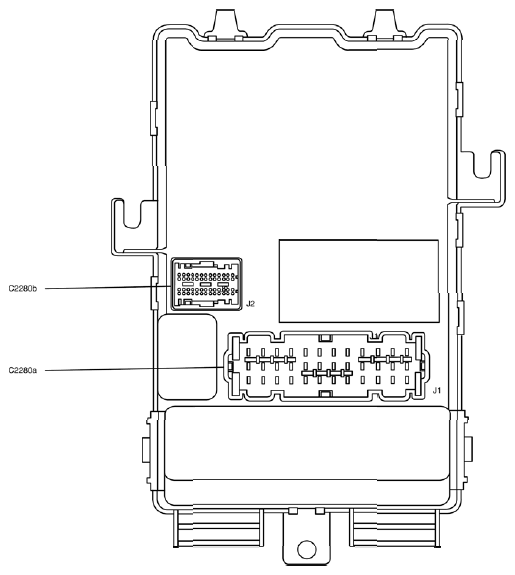

Smart Junction Box (SJB)
NOTE:
For component location, see ELECTRICAL COMPONENT LOCATOR
article.
SMART JUNCTION BOX RELAY IDENTIFICATION
| RELAY DESCRIPTION |
|---|
| Accessory delay relay 1 |
| Accessory delay relay 2 |
SMART JUNCTION BOX FUSE IDENTIFICATION LEGEND
| Fuse | Amps | Circuits protected |
|---|---|---|
| F3 | 10A | Windshield wiper motor |
| F4 | 5A | Exterior rear view mirror switch |
| F5 | 20A | Power quarter window switch, Audio unit |
| F6 | 5A | Door lock switch, driver side, Door lock switch, passenger side, Memory set switch, Exterior rear view mirror switch |
| F7 | 10A | Rear wiper motor assembly |
| F8 | 10A | Instrument cluster, Electronic Automatic Temperature Control (EATC) module, Electronic Manual Temperature Control (EMTC) module, DVD player |
| F9 | 10A | Autolamp/Sunload sensor |
| F10 | 5A | Rear Integrated Control Panel (RICP) |
| F11 | 5A | Auxiliary blower speed relay 1, Auxiliary blower speed relay 2, Power liftgate module, Module, power sliding door, LH side, Module, power sliding door, RH side, Data Link Connector (DLC), Clock |
| F12 | 5A | Electronic Manual Temperature Control (EMTC) module, Brake shift interlock, Electronic Automatic Temperature Control (EATC) module |
| F13 | 5A | Overhead console, Heated seat module, driver side front, Heated seat module, passenger side front, Parking Aid Module (PAM), Power liftgate module, Module, power sliding door, LH side, Module, power sliding door, RH side, Climate controlled seat module |
| F14 | 5A | Front blower motor relay, Rear window defrost relay |
| F15 | 10A | Brake pedal position switch |
| F16 | 5A | Steering position sensor, Overhead console, Electrochromatic inside mirror unit, Instrument cluster |
| F17 | 10A | Restraints control module, Power quarter window switch, Occupant classification sensor module |
| F18 | 10A | ABS control module, Brake pressure switch, Speed control servo |
| F19 | 5A | Passive anti-theft transceiver module, Instrument cluster, PCM power diode |
| F20 | 10A | Power liftgate module, Audio unit |
| F21 | 10A | Digital Transmission Range (DTR) sensor |
