Auxiliary Relay Box 1
NOTE:
For component location, see ELECTRICAL COMPONENT LOCATOR
article.

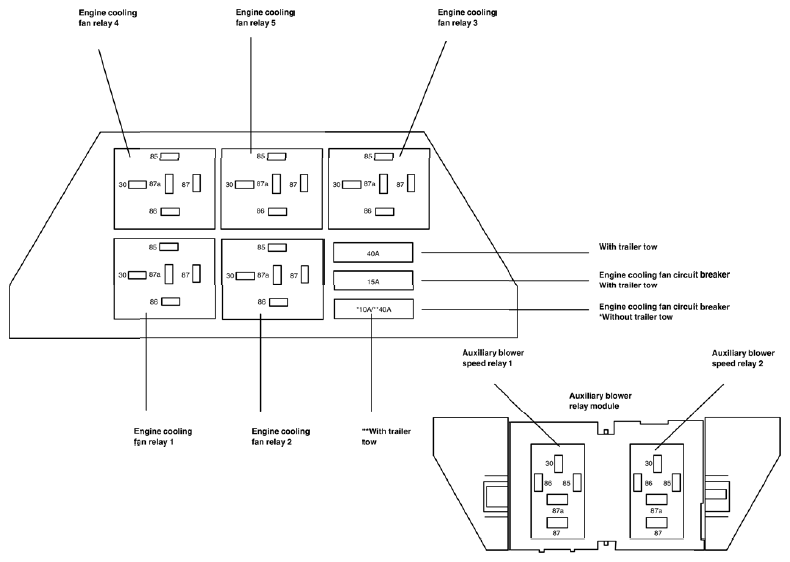

AUXILIARY RELAY BOX 1 RELAY IDENTIFICATION
| RELAY DESCRIPTION |
|---|
| Engine cooling fan relay 4 |
| Engine cooling fan relay 5 |
| Engine cooling fan relay 3 |
| Engine cooling fan relay 2 |
| Engine cooling fan relay 1 |
| Auxiliary blower speed relay 2 |
| Auxiliary blower relay module |
| Auxiliary blower speed relay 1 |
