Battery Cables: Notes

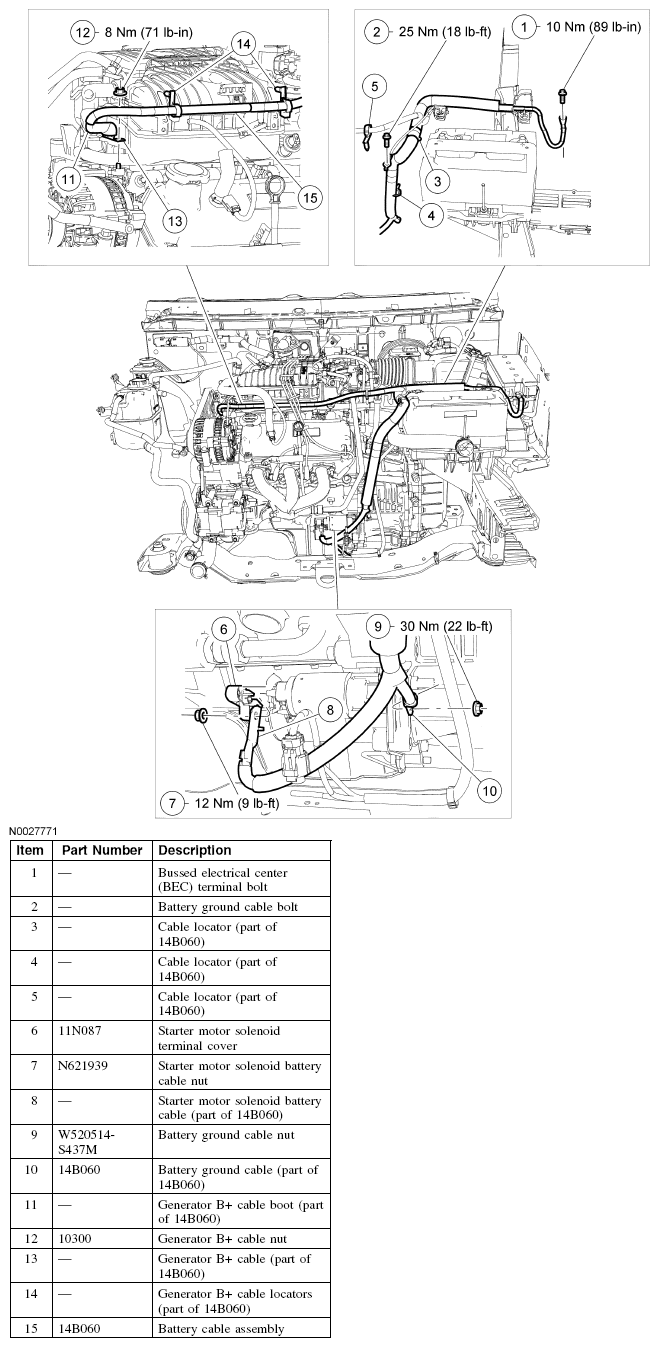

Fig 1: Identifying Battery Cables Components

G04662439

Courtesy of FORD MOTOR CO.
