Glass, Frames and Mechanisms - Exploded View

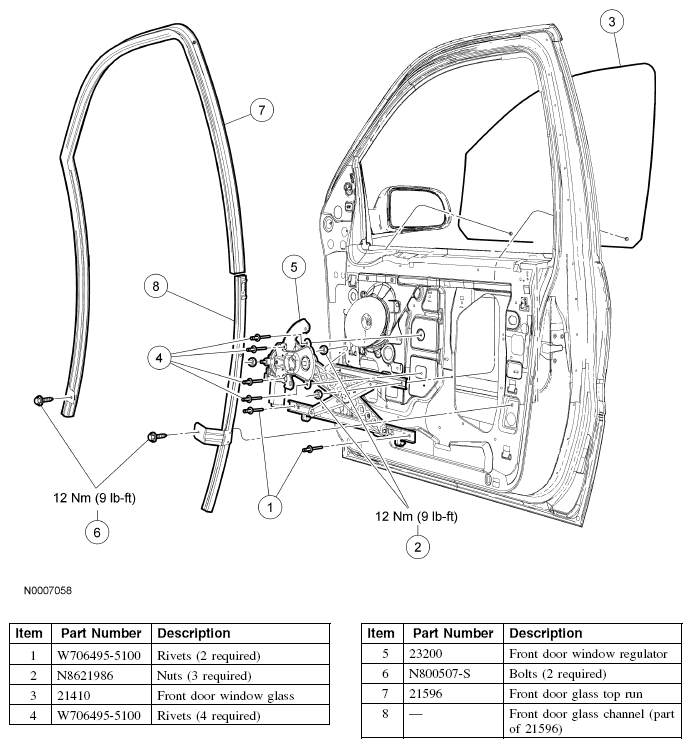

Fig 1: Glass, Frames And Mechanisms - Exploded View With Torque Specifications

Courtesy of FORD MOTOR CO.

1. For additional information, refer to the procedures in this article.
