Seat - Exploded View, Third Row

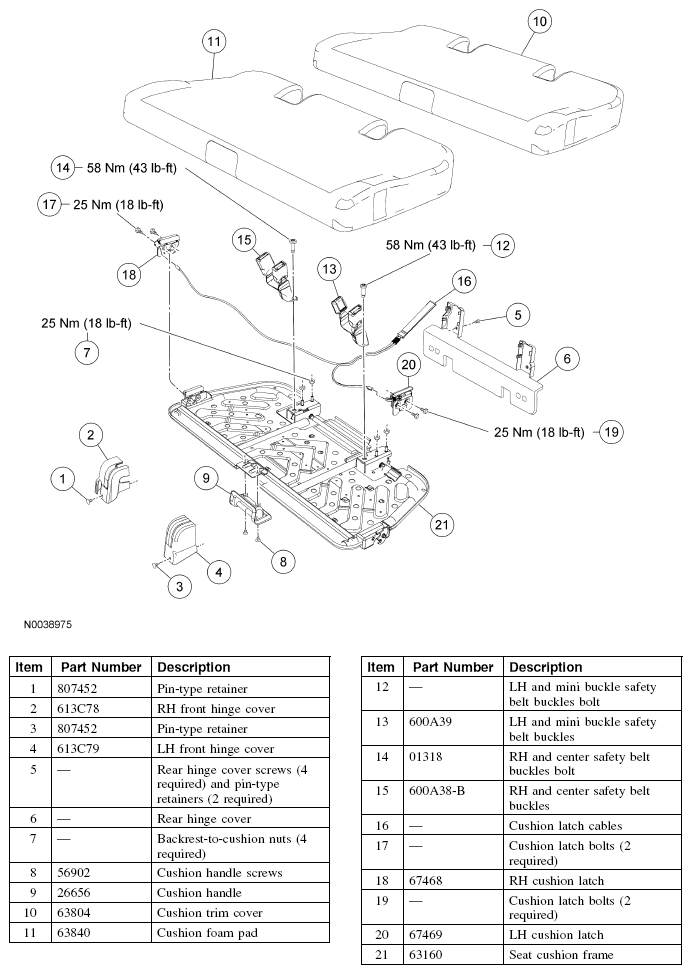

Fig 1: Exploded View Of Rear Seat Cushion - Third Row With Torque Specifications
G04663327Courtesy of FORD MOTOR CO.

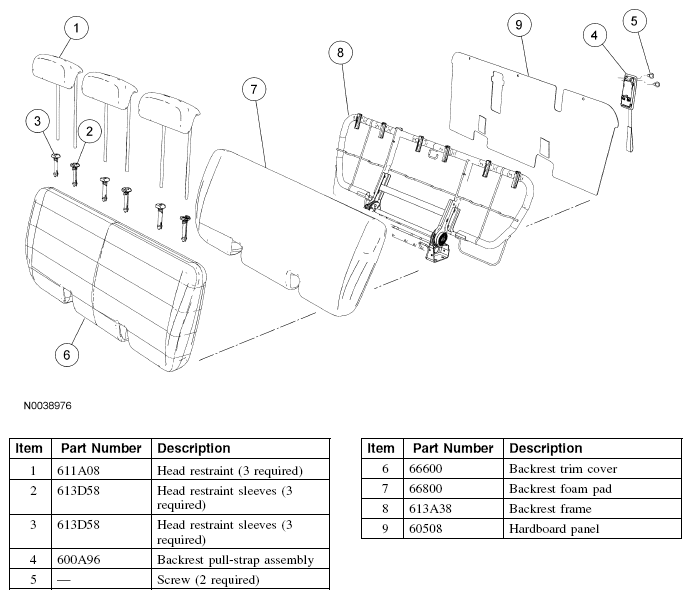

Fig 2: Exploded View Of Rear Seat Backrest - Third Row
G04663328Courtesy of FORD MOTOR CO.
  1. For additional information, refer to the procedures in this article.
