Seat - Exploded View, Front

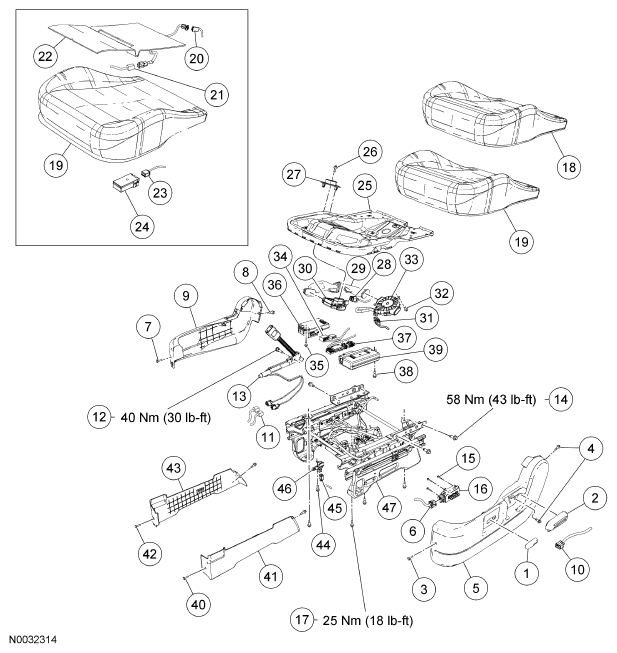

Fig 1: Exploded View Of Front Seat Cushion - Driver With Torque Specifications

Courtesy of FORD MOTOR CO.

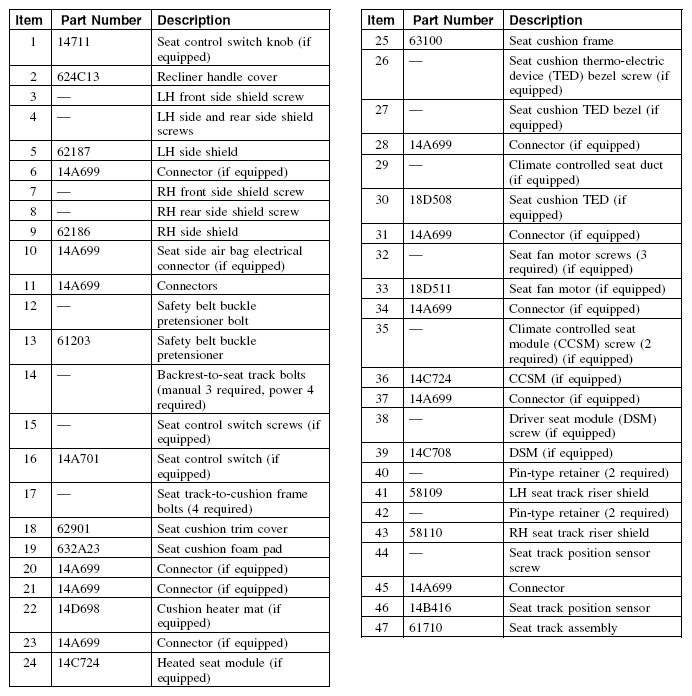

Fig 2: Front Seat Cushion - Driver Reference Table

Courtesy of FORD MOTOR CO.

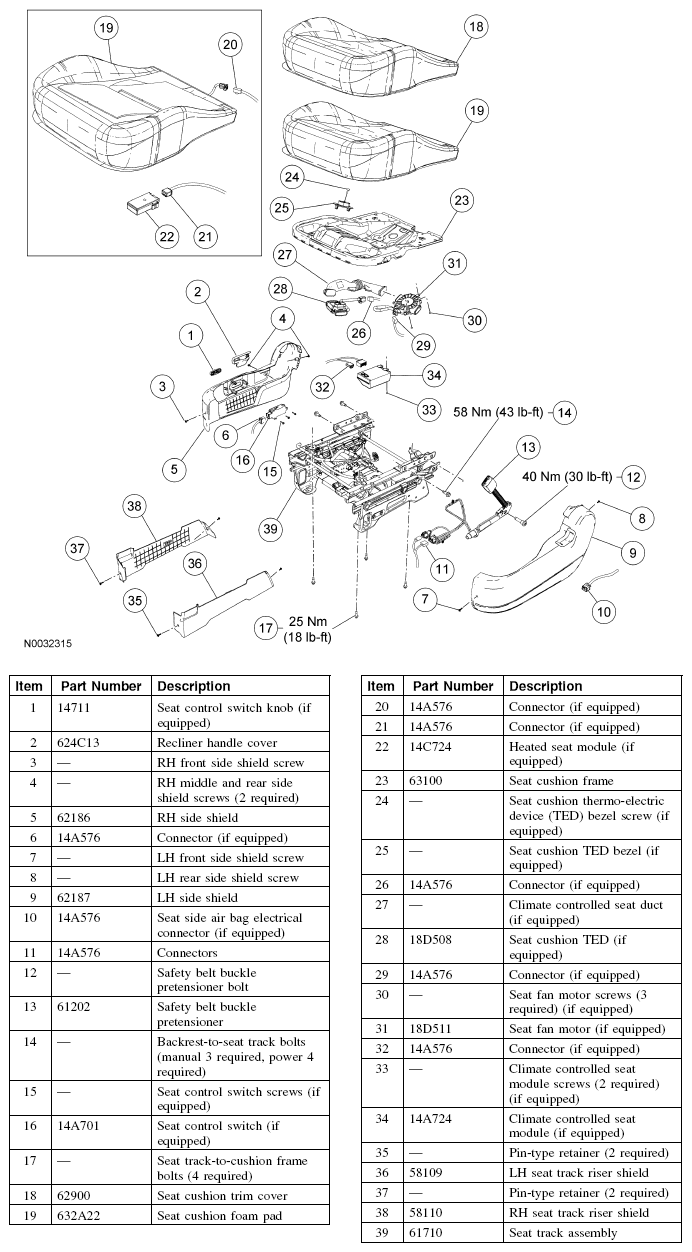

Fig 3: Exploded View Of Front Seat Cushion - Passenger With Torque Specifications

Courtesy of FORD MOTOR CO.

Front Seat Backrest

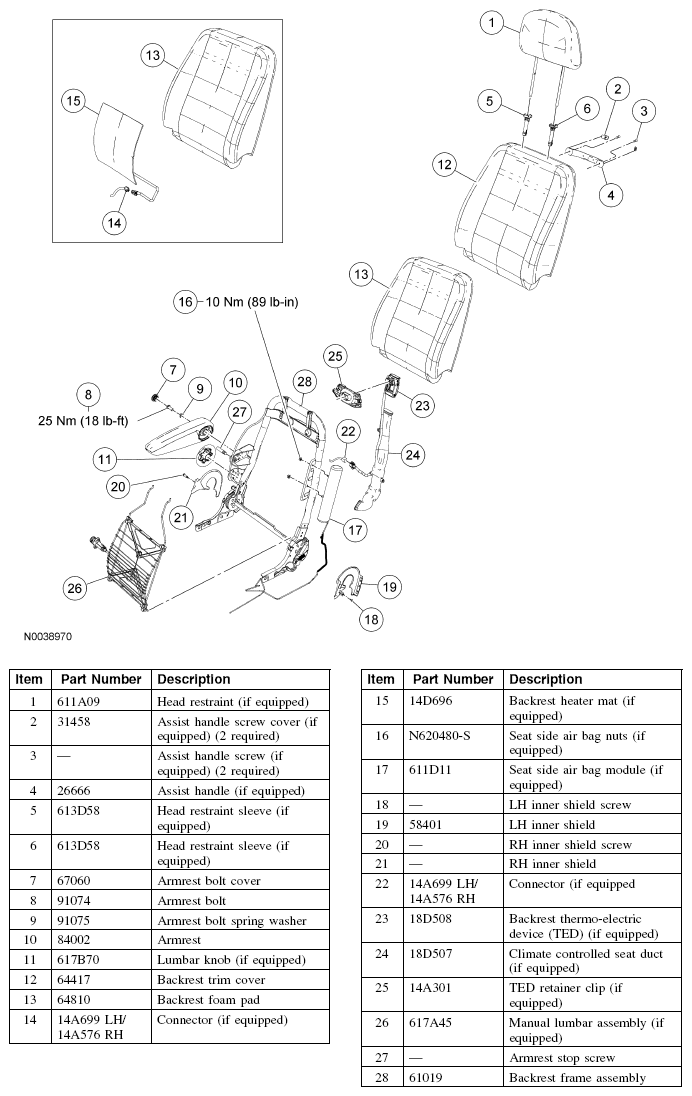

Fig 4: Exploded View Of Front Seat Backrest With Torque Specifications

Courtesy of FORD MOTOR CO.

1. For additional information, refer to the procedures in this article.
