Seat Cushion - Third Row: Notes

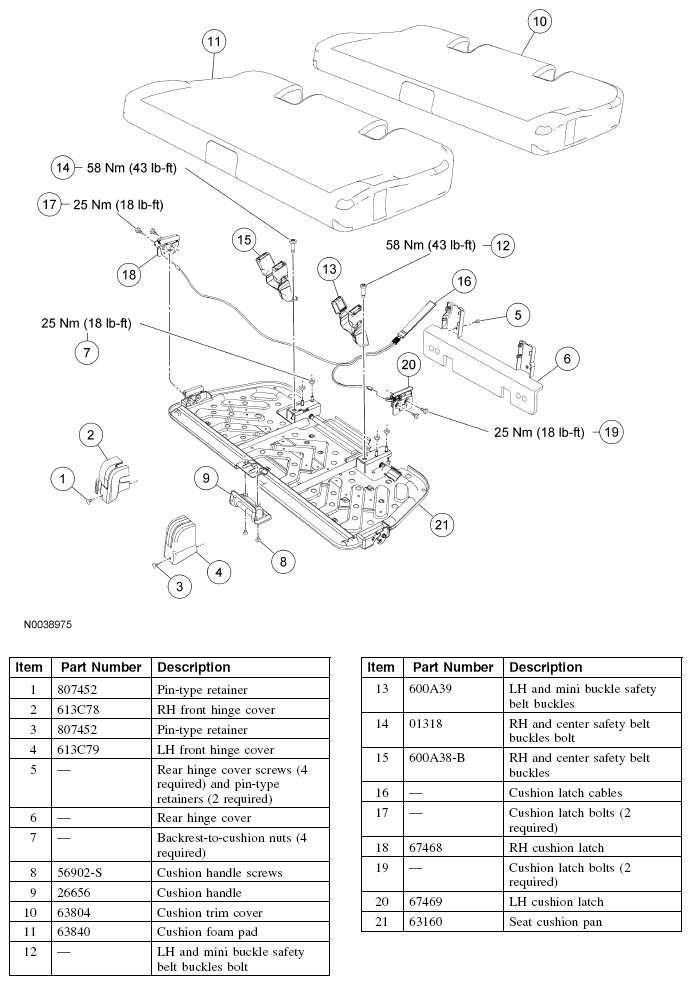

Fig 1: Exploded View Of Seat Cushion - Third Row With Torque Specifications

G04663354

Courtesy of FORD MOTOR CO.
