Home >> Ford >> 2006 >> Freestar Base >> Repair and Diagnosis >> Body & Frame >> Seats >> Seat System >> Disassembly And Assembly >> Seat Backrest - Third Row >> Notes

Seat Backrest - Third Row: Notes

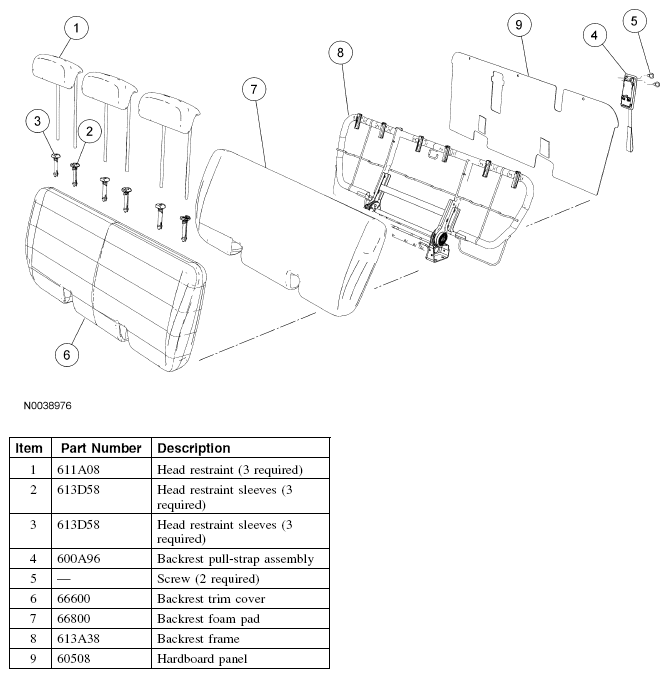

Fig 1: Exploded View Of Rear Seat Backrest - Third Row

G04663384

Courtesy of FORD MOTOR CO.
