Home >> Ford >> 2006 >> Freestar Base >> Repair and Diagnosis >> Body & Frame >> Seats >> Seat System >> Disassembly And Assembly >> Seat Backrest - Second Row, Bucket >> Notes

Seat Backrest - Second Row, Bucket: Notes

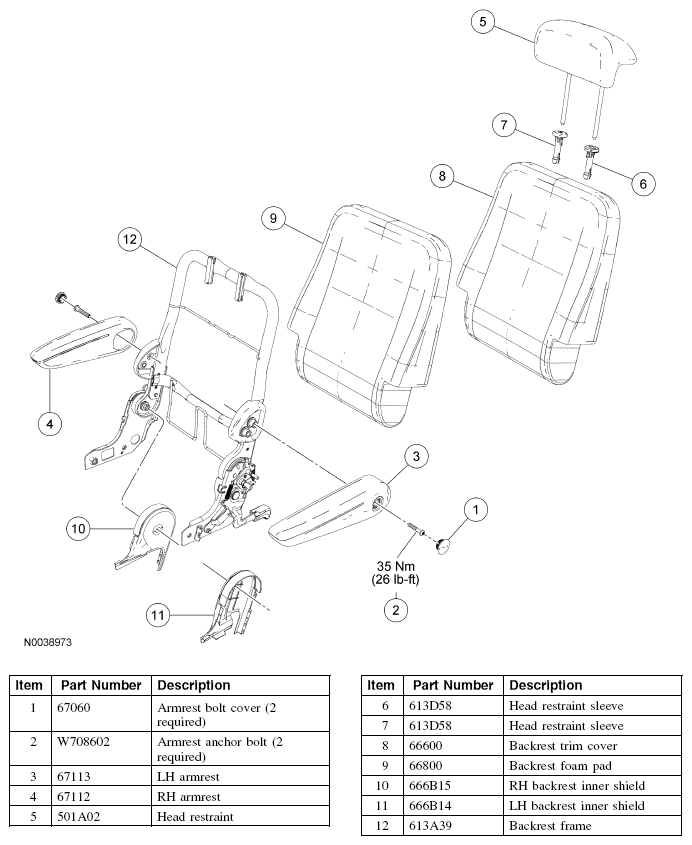

Fig 1: Exploded View Of Seat Backrest - Second Row, Bucket With Torque Specification

G04663379

Courtesy of FORD MOTOR CO.
