Seat Backrest - Second Row, Bench: Notes

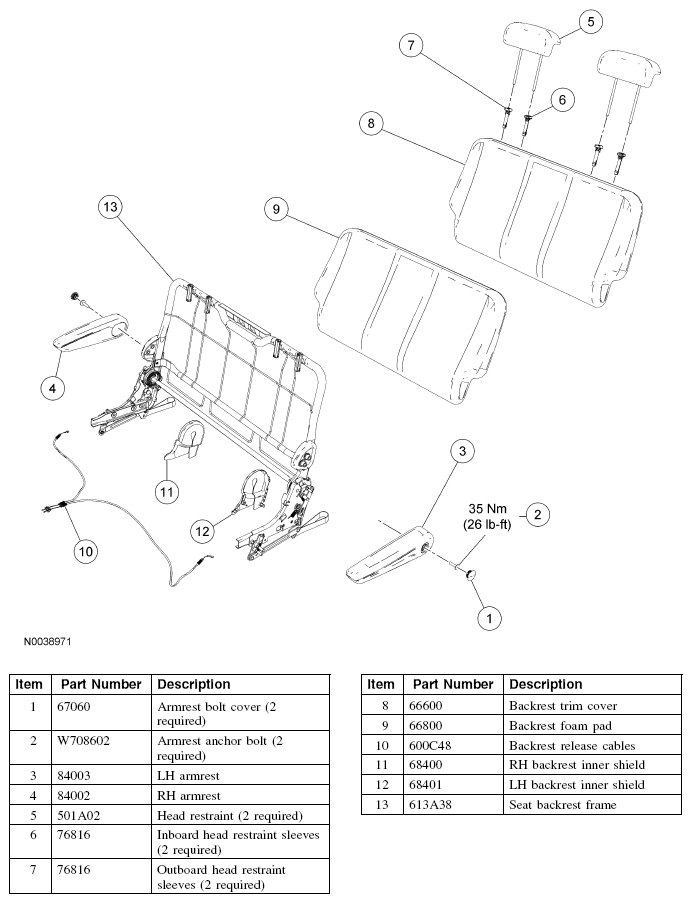

Fig 1: Exploded View Of Seat Backrest - Second Row, Bench With Torque Specification

G04663375

Courtesy of FORD MOTOR CO.
