Bumper - Exploded View, Front
Bumper - Exploded View, Front

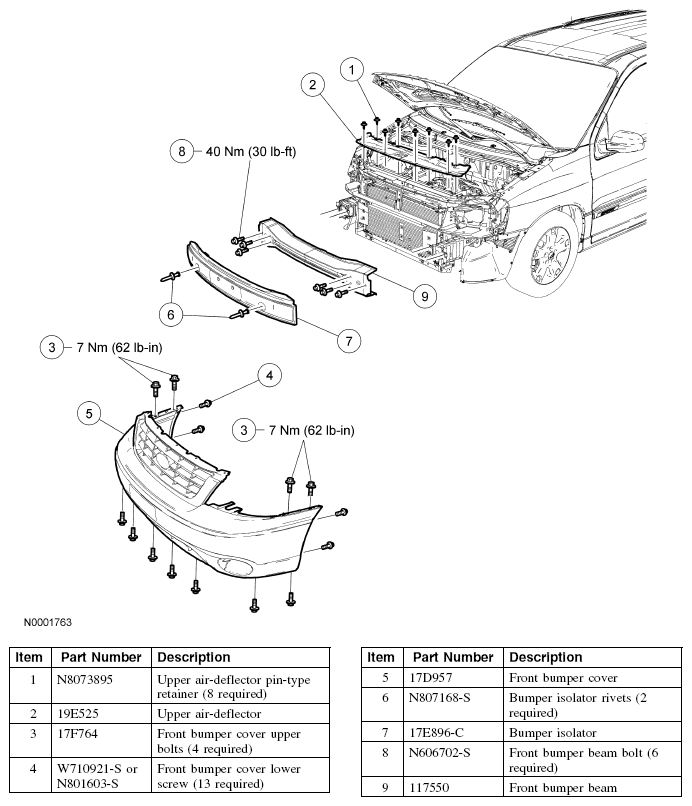

Fig 1: Exploded View Of Bumper - Front
Courtesy of FORD MOTOR CO.
For additional information, refer to the appropriate procedure in this article.
Courtesy of FORD MOTOR CO.
