Home >> Ford >> 2006 >> Freestar Base >> Repair and Diagnosis >> Accessories & Equipment >> Communication Devices >> MULTIFUNCTION Electronic Modules System >> Removal And Installation >> Smart Junction Box (SJB) >> Notes

Smart Junction Box (SJB): Notes

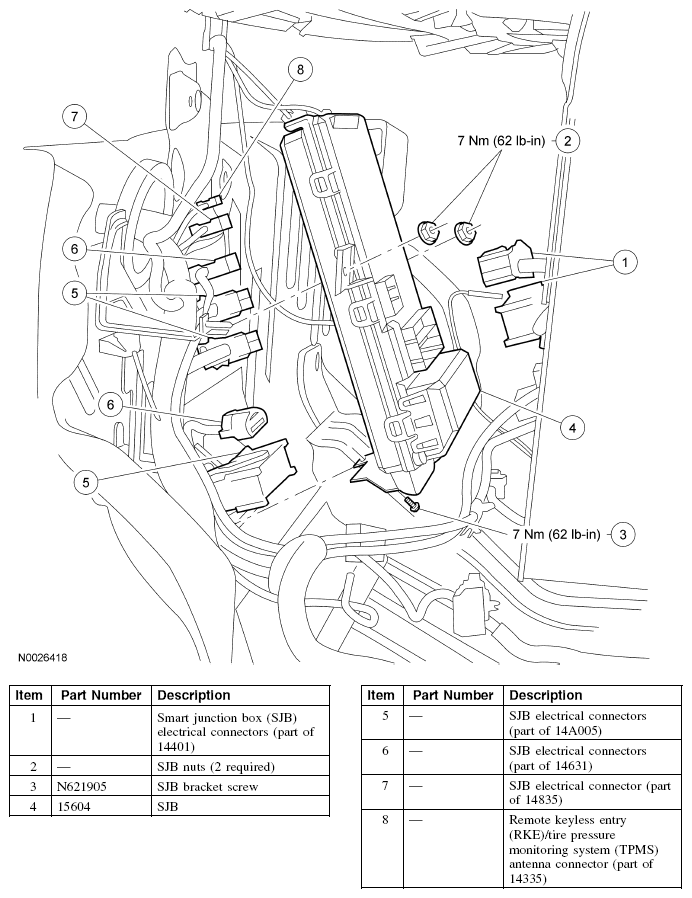

Fig 1: Smart Junction Box (SJB) Replacement Components With Torque Specifications

G04662735

Courtesy of FORD MOTOR CO.
