Multifunction switch (13K359): Schematic

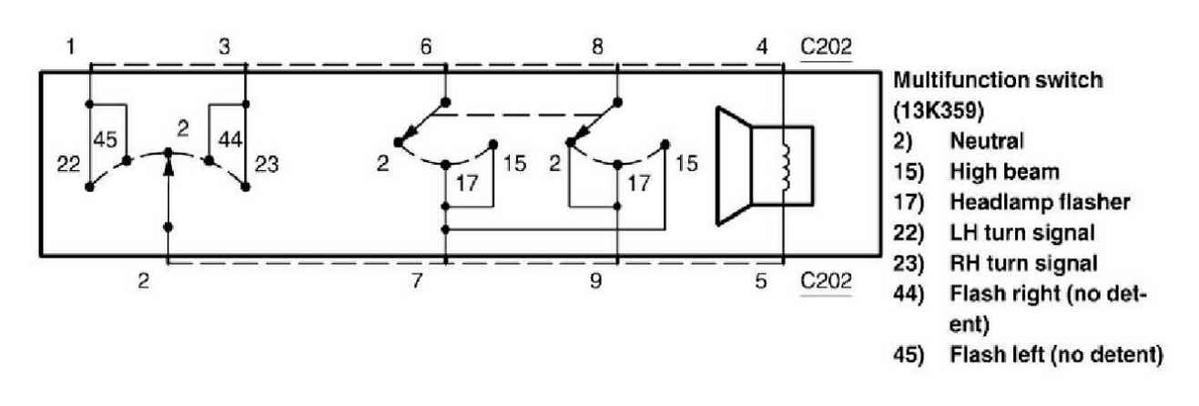

Fig 1: Multifunction Switch (13K359) - Schematic Diagram

G04597097

Courtesy of FORD MOTOR CO.
