Transmission Range (TR) Sensor: Removal

  1. Disconnect the transmission range (TR) sensor electrical connector and the selector lever cable.

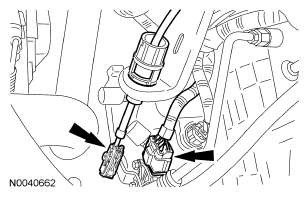

    Fig 1: Locating Transmission Range (TR) Sensor Electrical Connector
    G04652758Courtesy of FORD MOTOR CO.
    NOTE: Failure to hold the shift lever while loosening or tightening the manual shaft lever will transmit rotational torque to the TR switch and shift mechanism.
  2. Remove the TR sensor (automatic transaxle shown removed for clarity).
    1. Remove the manual control lever.
    2. Remove the bolts.

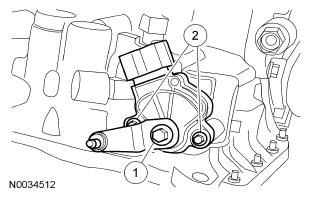

      Fig 2: Identifying Manual Control Lever And Bolts
      G04652759Courtesy of FORD MOTOR CO.
