Transmission Range (TR) Sensor: Notes

WARNING: This page is about a different variant/trim than selected.
SPECIAL TOOL(S)

G04652756Courtesy of FORD MOTOR CO.
 Alignment Tool, Transmission Range Sensor
307-415

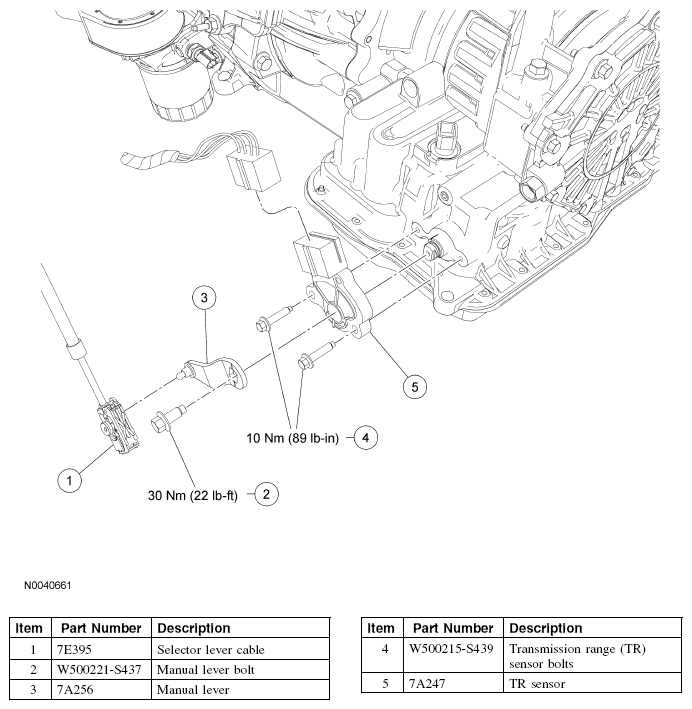

Fig 1: Transmission Range (TR) Sensor Replacement Components With Torque Specifications
G04652757Courtesy of FORD MOTOR CO.
