Main Control Valve Body: Notes

WARNING: This page is about a different variant/trim than selected.

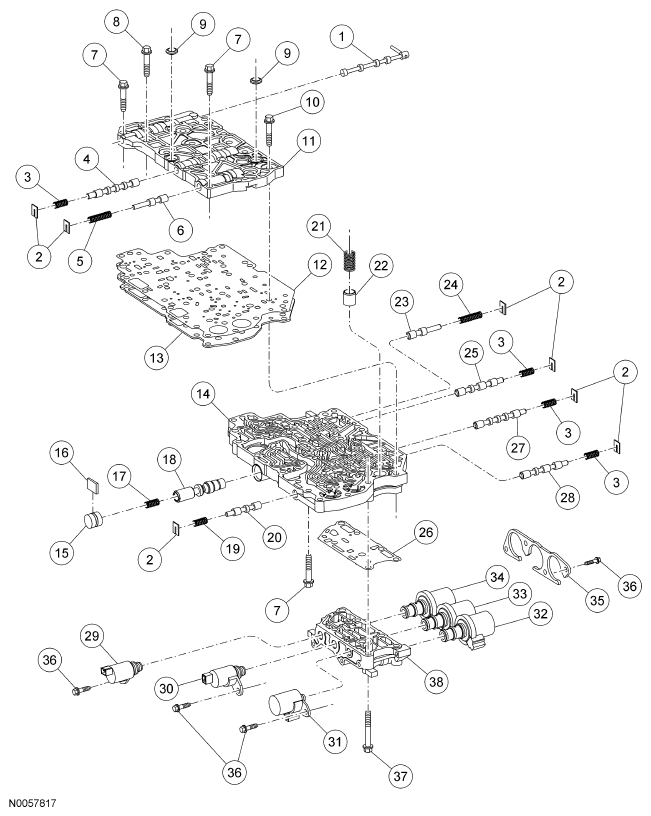

Fig 1: Exploded View Of Main Control Valve Body
G04652975Courtesy of FORD MOTOR CO.

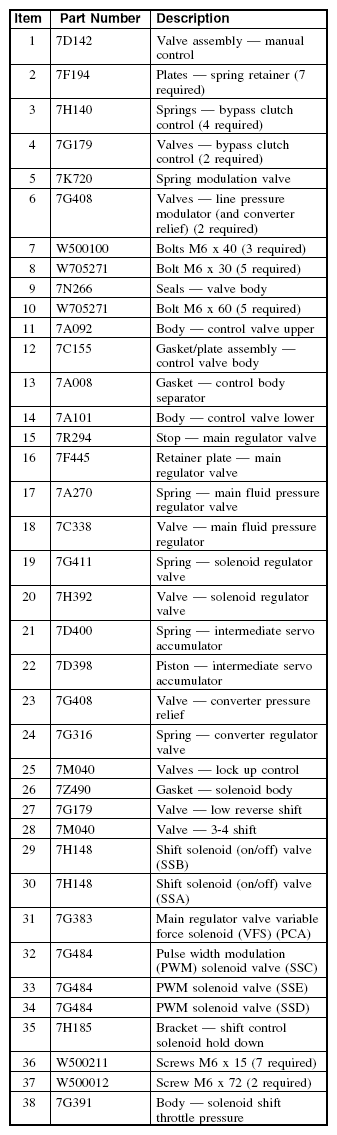

Fig 2: Main Control Valve Body Components Description Chart
G04652976Courtesy of FORD MOTOR CO.
