Manual Transaxle: Notes

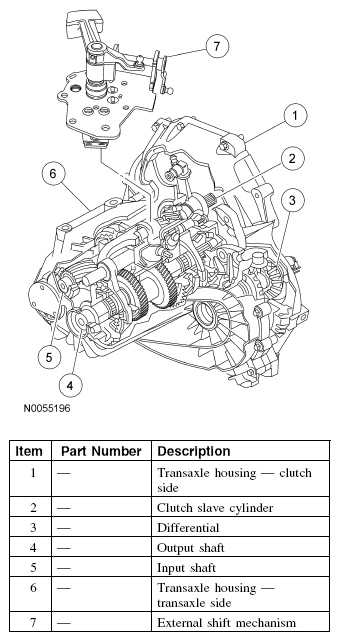

Fig 1: Identifying MTX Transaxle Components

Courtesy of FORD MOTOR CO.

The MTX-75 is a 5-speed synchronized unit. The MTX-75 has the following features:

• Two-part aluminum housing
• The input shaft has 2 tapered roller bearings. Input shaft end play is controlled by a selective shim located under the bearing cup
• The output shaft has 2 tapered roller bearings. Output shaft end play is controlled by a selective shim located under the bearing cup
• The differential has 2 tapered roller bearings. Differential end play is controlled by a selective shim located under the bearing cup
• All gears are bevel cut
• All gears, including reverse, turn on needle bearings
• Synchronized in all gears
• First and 2nd gear are dual synchronized
• Single piece brass shift forks

The input shaft, output shaft and the differential assembly are assembled under preload. If the transmission is disassembled, a preload measurement must be taken.

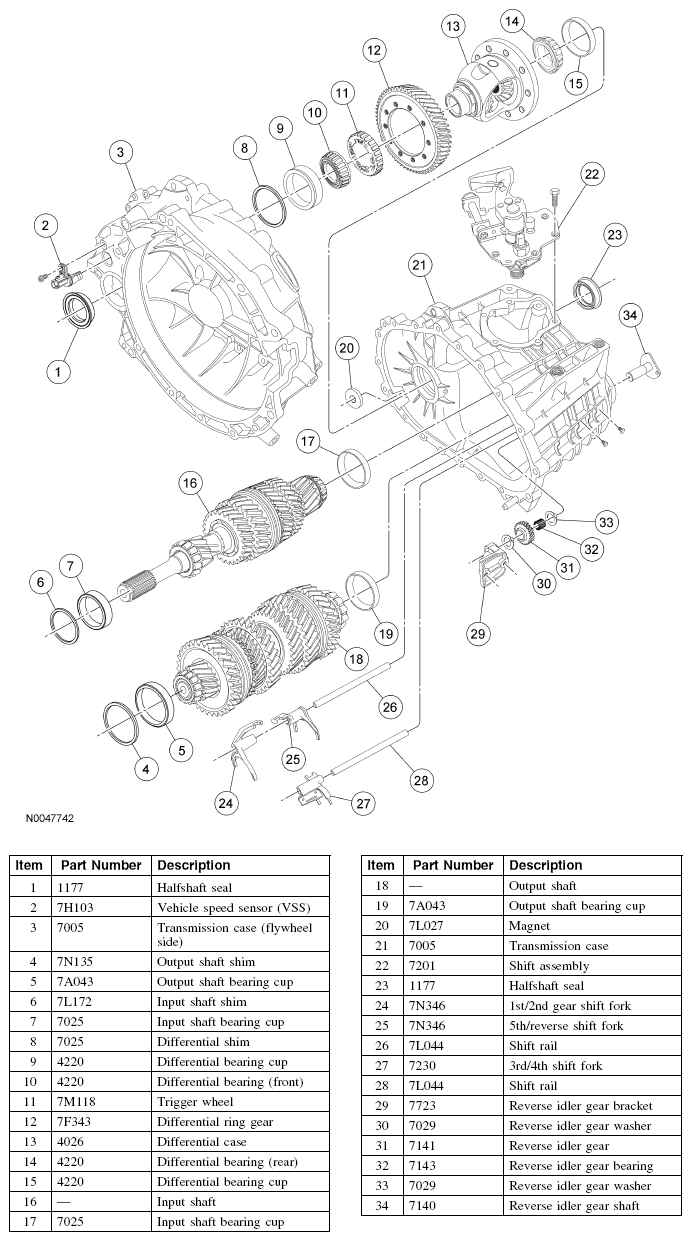

Fig 2: Exploded View Of Transmission

Courtesy of FORD MOTOR CO.

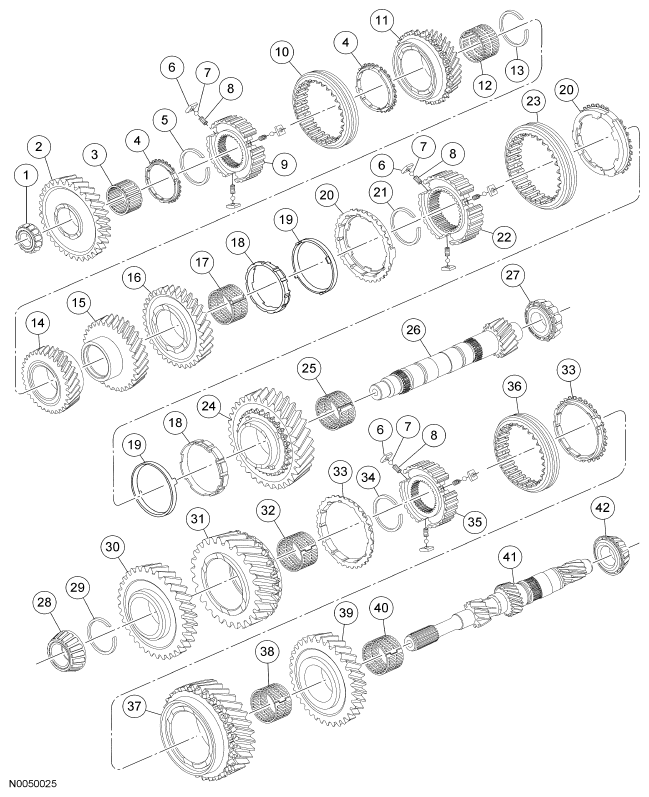

Fig 3: Exploded View Of Input And Output Shafts

Courtesy of FORD MOTOR CO.

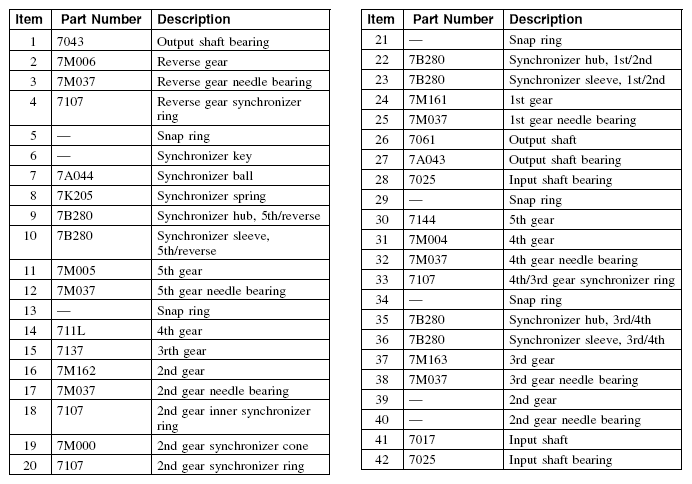

Fig 4: Input And Output Shafts Part Description Chart

Courtesy of FORD MOTOR CO.
