Strut and Spring Assembly: Notes

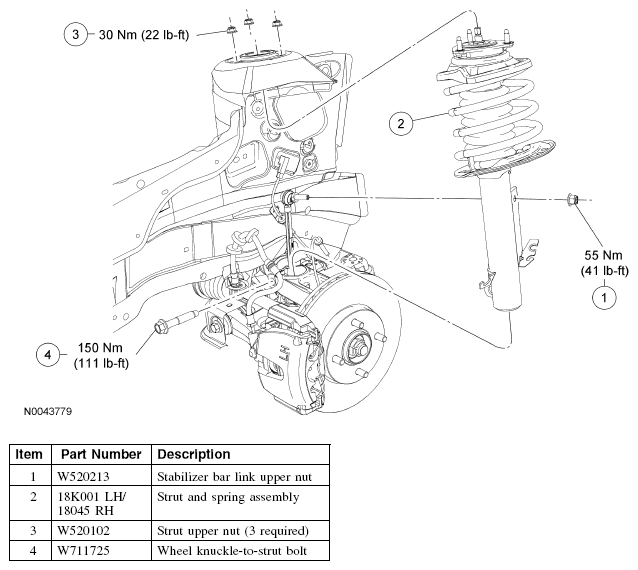

Fig 1: Strut And Spring Assembly Replacement Components With Torque Specifications

G04651466

Courtesy of FORD MOTOR CO.
