Stabilizer Bar: Notes

SPECIAL TOOL(S)

Courtesy of FORD MOTOR CO.	Alignment Pins, Subframe 502-002 (T94P-2100-AH)
Courtesy of FORD MOTOR CO.	Remover, Tie-Rod End 211-001 (TOOL-3290-D)
Courtesy of FORD MOTOR CO.	Adapter 307-102 (T81P-70363-A4) Part of 307-S098 (T81P-77000-A)

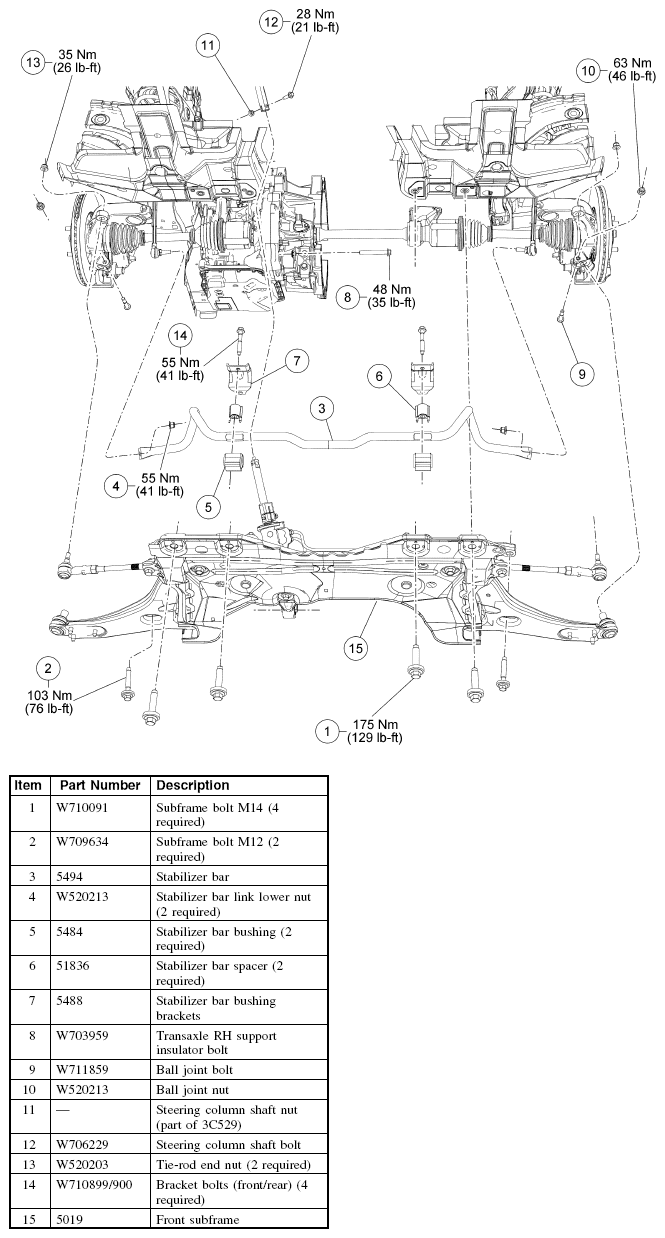

Fig 1: Exploded View Of Stabilizer Bar With Torque Specifications

Courtesy of FORD MOTOR CO.
