Power Steering Pump - Early Build: Notes

SPECIAL TOOL(S)

G04651727Courtesy of FORD MOTOR CO.
 Installer Set, Teflon® Seal
211-D207 (D90P-3517-A)
MATERIAL

Item Specification
MERCON® Multi-Purpose ATF Transmission Fluid XT-2-QDX MERCON®

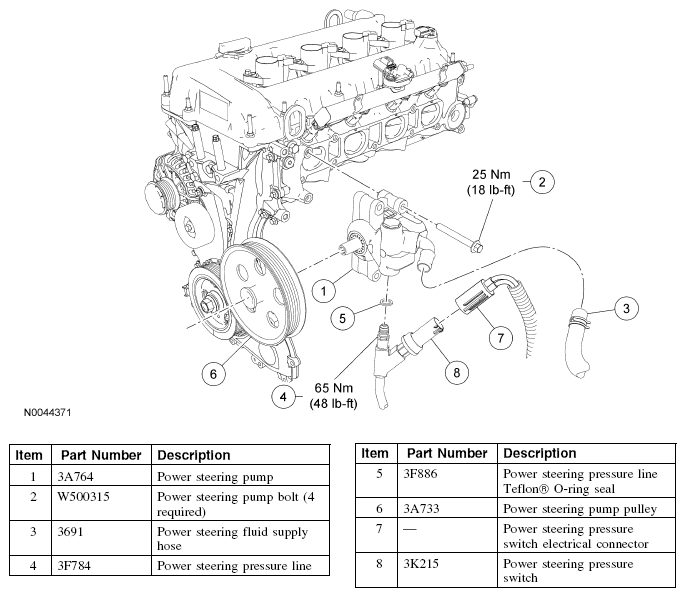

Fig 1: Power Steering Pump -- Early Build Remove/Install Components With Torque Specifications
G04651728Courtesy of FORD MOTOR CO.
