Home >> Ford >> 2006 >> Focus ZX4 ST >> Repair and Diagnosis >> Brakes >> Traction Control >> Vehicle Dynamic Systems >> Removal And Installation >> Wheel Speed Sensor - Rear >> Notes

Wheel Speed Sensor - Rear: Notes

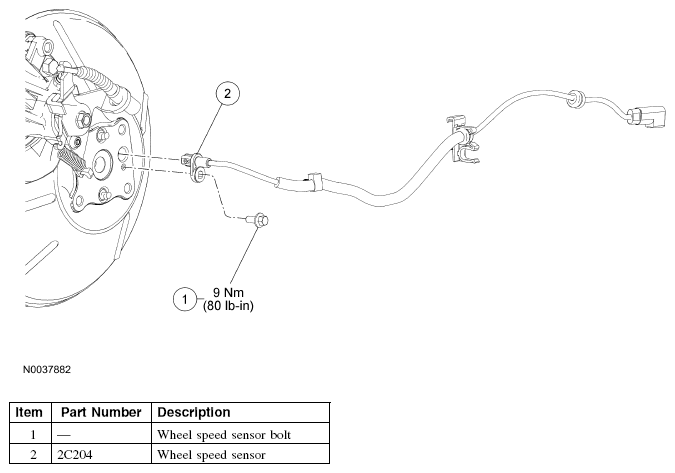

Fig 1: Wheel Speed Sensor -- Rear Components With Torque Specifications

G04651711

Courtesy of FORD MOTOR CO.
