Seat Backrest - Front
>>
Notes
Seat Backrest - Front: Notes
NOTE:
Driver seat shown, passenger seat similar.

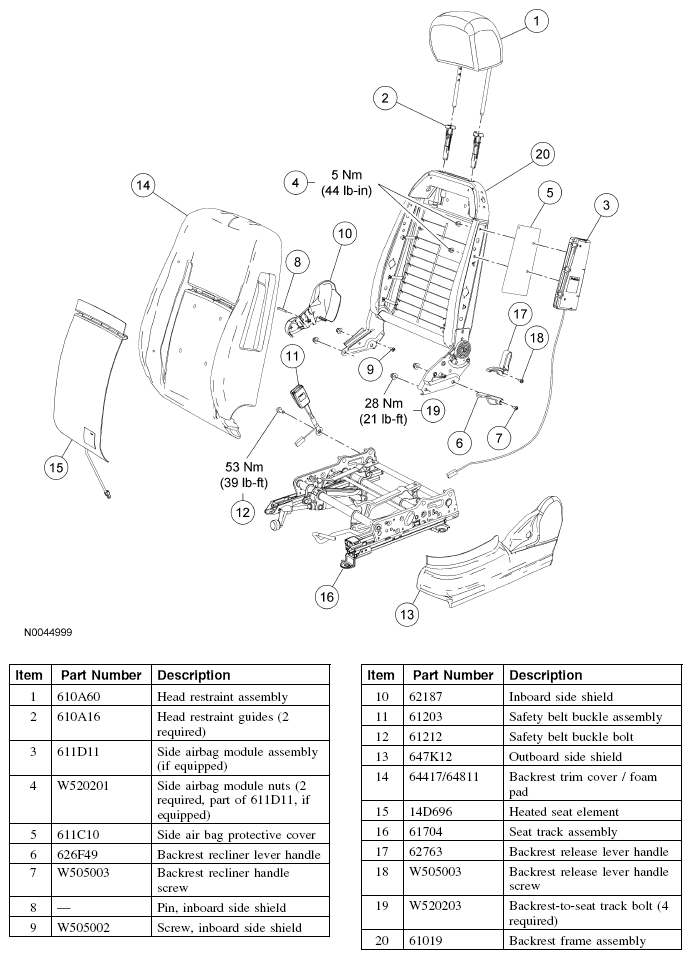

Fig 1: Exploded View Of Seat Backrest - Front With Torque Specification
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
