Home >> Ford >> 2006 >> Focus ZX4 ST >> Repair and Diagnosis (Single Page) >> Suspension >> Front Suspension >> Front Suspension System >> Disassembly And Assembly >> Strut and Spring Assembly >> Notes

Strut and Spring Assembly: Notes

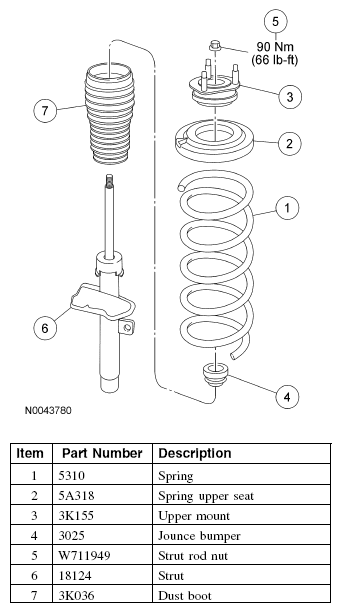

Fig 1: Strut And Spring Assembly Replacement Components With Torque Specifications

G04651468

Courtesy of FORD MOTOR CO.
