Anti-Lock Brake System (ABS) Module: Notes

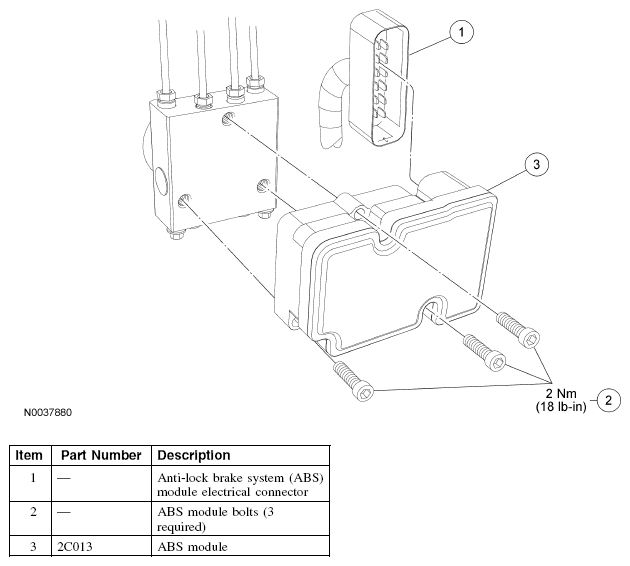

Fig 1: Anti-Lock Brake System (ABS) Module Components With Torque Specifications
G04651709Courtesy of FORD MOTOR CO.
