Home >> Ford >> 2006 >> Explorer 4.6 8, RWD >> Repair and Diagnosis >> Restraints >> Restraints Control Systems >> Safety Belt System >> Removal And Installation >> Safety Belt Buckle - Third Row >> Notes

Safety Belt Buckle - Third Row: Notes

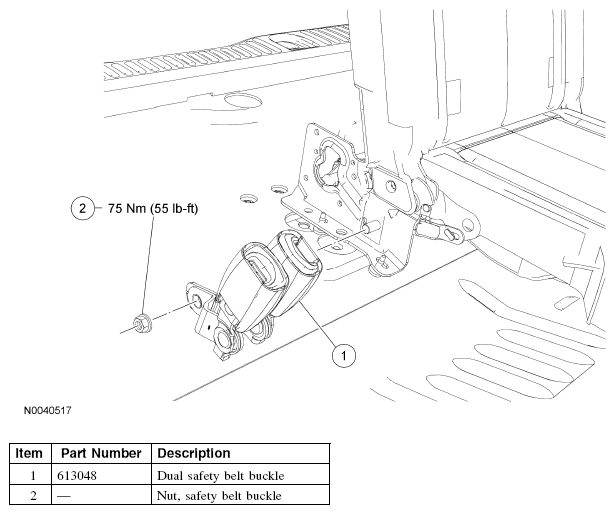

Fig 1: Safety Belt Buckle -- Third Row Replacement Components With Torque Specifications
G04642623Courtesy of FORD MOTOR CO.
