Transfer Case - Exploded View

WARNING: This page is about a different variant/trim than selected.

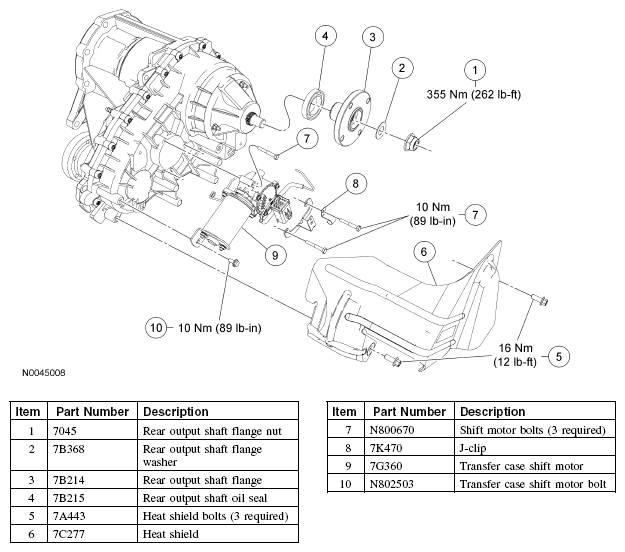

Fig 1: Exploded View Of Transfer Case With Torque Specifications
G04640879Courtesy of FORD MOTOR CO.
  1. For additional information, refer to the appropriate procedure.
