Transfer Case - 2-Speed Torque-On-Demand: Notes

WARNING: This page is about a different variant/trim than selected.

SPECIAL TOOLS DESCRIPTION

Courtesy of FORD MOTOR CO.	Remover, Bearing Cup 308-047 (T77F-1102-A)
Courtesy of FORD MOTOR CO.	Installer, Wheel Hub Bearing Cup 204-020 (T73T-1202-A)
Courtesy of FORD MOTOR CO.	Puller, Bearing 205-D064 (D84L-1123-A) or equivalent
Courtesy of FORD MOTOR CO.	Remover, S tat or Bearing 307-318 (T94P-77001-KH)
Courtesy of FORD MOTOR CO.	Holding Fixture, Drive Pinion Flange 205-126 (T78P-4851-A)
Courtesy of FORD MOTOR CO.	Installer, Differential Bearing Cup 308-163 (T88C-77000-FH)
Courtesy of FORD MOTOR CO.	Adapter for 303-224 (Handle) 205-153 (T80T-4000-W)
Courtesy of FORD MOTOR CO.	Holding Fixture, Transmission 307-003 (T57L-500-B)
Courtesy of FORD MOTOR CO.	Slide Hammer 100-001 (T50T-100-A)
Courtesy of FORD MOTOR CO.	Installer, Input Shaft Bearing 308-085 (T83T-7025-C)
Courtesy of FORD MOTOR CO.	Installer, Input Shaft Oil Seal 308-186 (T90T-7127-B)
Courtesy of FORD MOTOR CO.	Remover, Bushing 307-001 (TOOL-1175-AC) or equivalent
Courtesy of FORD MOTOR CO.	Remover, Output Shaft Flange 307-523 or equivalent
Courtesy of FORD MOTOR CO.	Remover, Oil Seal 303-409 (T92C-6700-CH)
Courtesy of FORD MOTOR CO.	Installer, Valve Stem Oil Seal 303-367 (T90P-6510-AH)

MATERIAL SPECIFICATION

Item	Specification
Threadlock and Sealer TA-25	WSK-M2G351-A5
Silicone Gasket and Sealant TA-30	WSE-M4G323-A4
MERCON® Multi-Purpose Automatic Transmission Fluid XT-2-QDX (US); XT-2-LM12 (Canada)	MERCON®

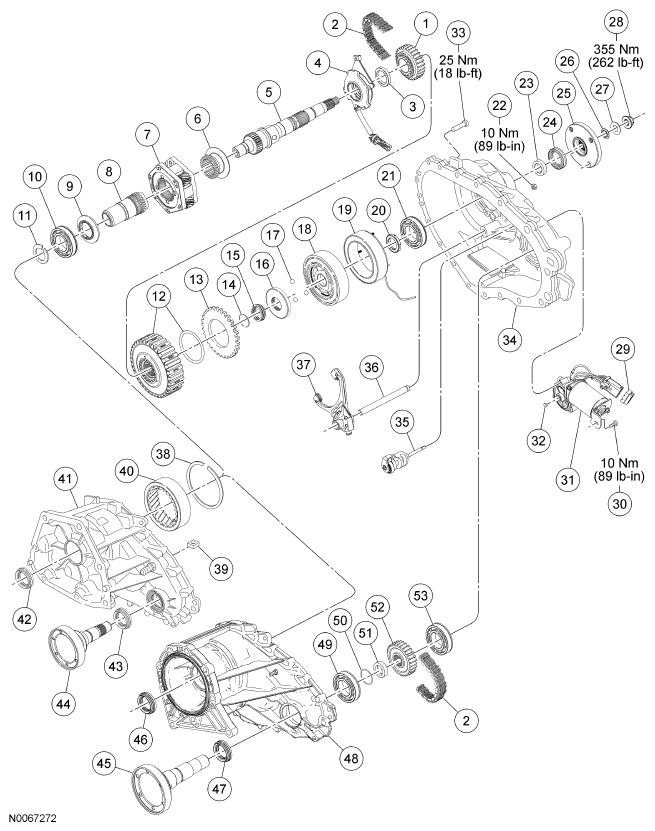

Fig 1: Exploded View Of Transfer Case - 2-Speed With Torque Specifications

Courtesy of FORD MOTOR CO.

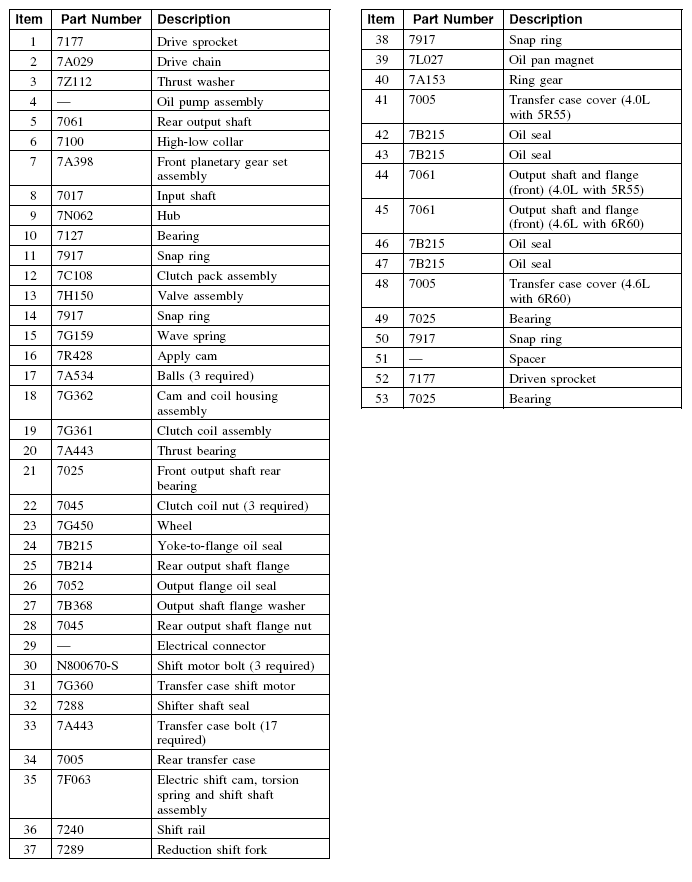

Fig 2: Item Description Of Transfer Case - 2-Speed

Courtesy of FORD MOTOR CO.
