Engine Ignition Components - Exploded View

NOTE:

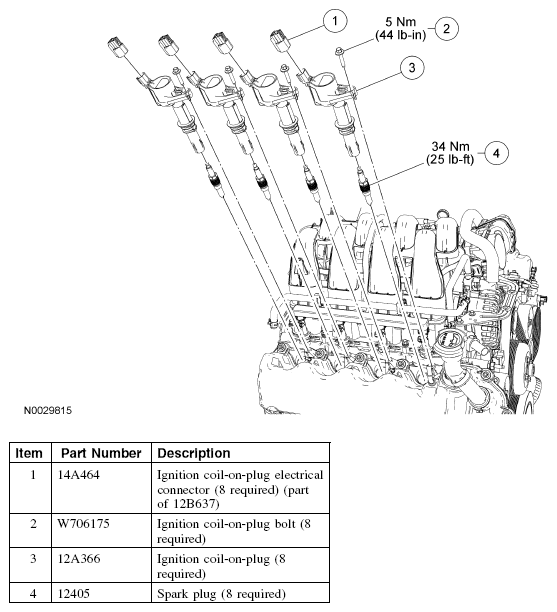

Fig 1: Exploded View Of Engine Ignition Components (RH Shown, LH Is Similar)

Courtesy of FORD MOTOR CO.

1. For additional information, refer to the appropriate procedure in this article.
