Instrument Panel - Exploded View

NOTE:

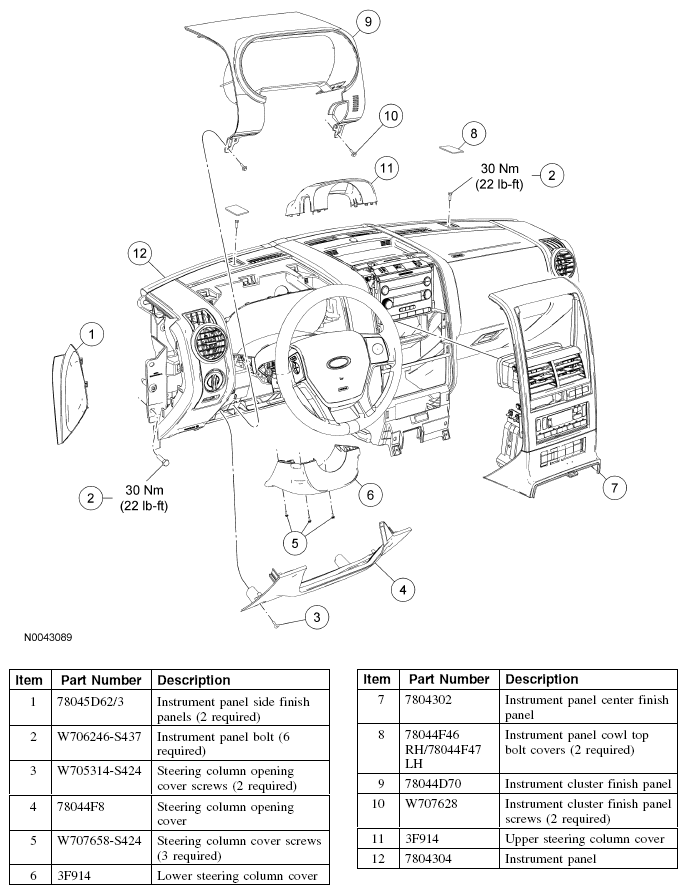

Fig 1: Exploded View Of Instrument Panel (Explorer Shown, Mountaineer Similar)
G04642459Courtesy of FORD MOTOR CO.
  1. For additional information, refer to the appropriate procedure in this article.
