Seat Backrest - Third Row: Notes

Third Row Seat Backrest

NOTE: RH backrest shown, LH similar.

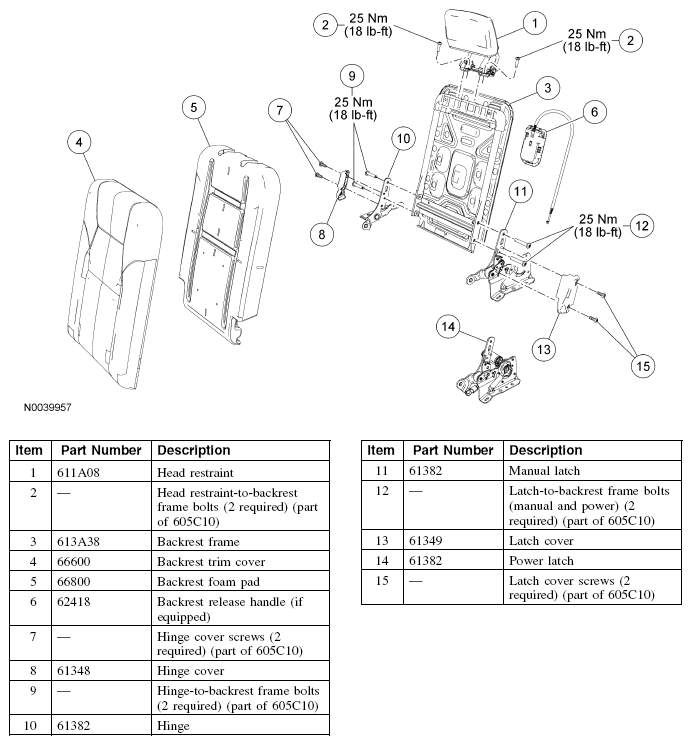

Fig 1: Exploded View Of Third Row Seat Backrest Components With Torque Specification
G04642348Courtesy of FORD MOTOR CO.
