Steering Column Shaft - Upper: Notes

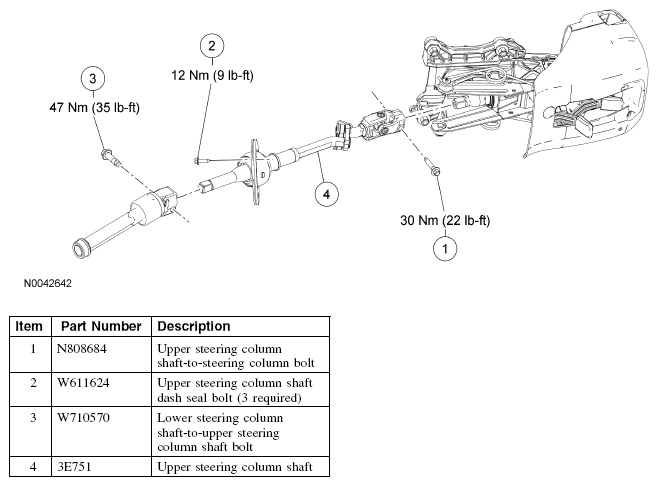

Fig 1: Steering Column Shaft -- Upper With Torque Specifications

G04637838

Courtesy of FORD MOTOR CO.
