Home >> Ford >> 2006 >> Explorer 4.0 E, RWD >> Repair and Diagnosis >> Steering >> Steering Column >> Removal And Installation >> Steering Column Shaft - Lower >> Notes

Steering Column Shaft - Lower: Notes

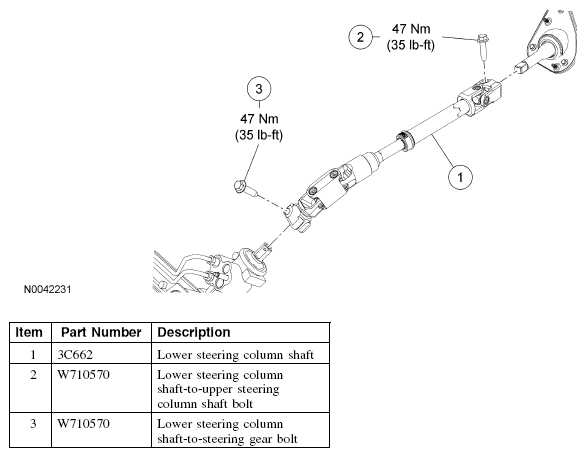

Fig 1: Steering Column Shaft -- Lower With Torque Specifications

G04637839

Courtesy of FORD MOTOR CO.
