Power Steering Pump - 4.6L: Notes

SPECIAL TOOLS REFERENCE

Courtesy of FORD MOTOR CO.

Installer Set, Teflon® Seal
211-D027 (D90P-3517-A) or equivalent

MATERIAL SPECIFICATIONS

Item	Specification
MERCON® Multi-Purpose Automatic Transmission Fluid XT-2-QDX (US); XT-2-LM12 (Canada)	MERCON®

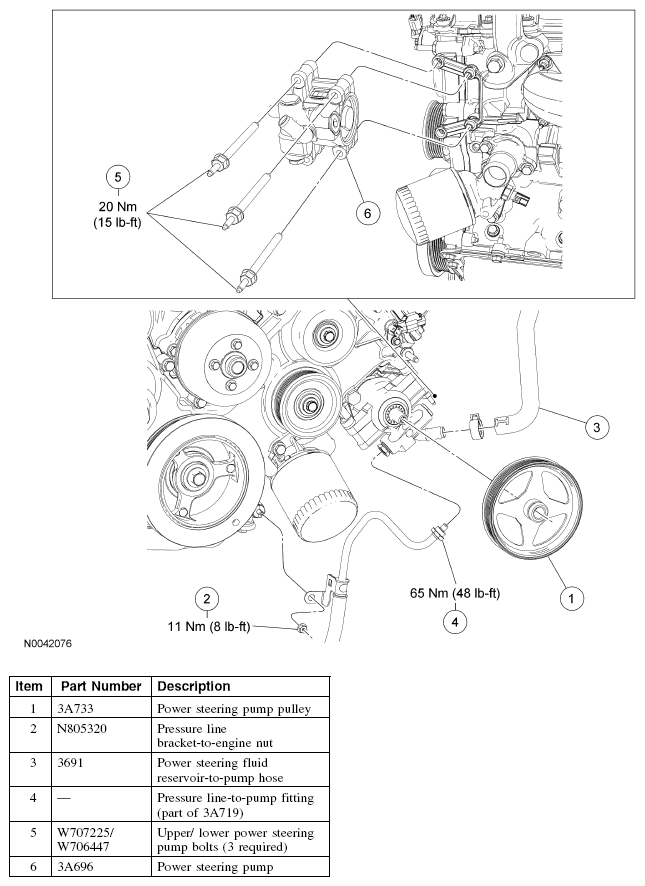

Fig 1: Power Steering Replacement Components With Torque Specifications

Courtesy of FORD MOTOR CO.
