Power Steering Fluid Cooler: Notes

MATERIAL SPECIFICATIONS

Item Specification
MERCON® Multi-Purpose Automatic Transmission Fluid XT-2-QDX (US); XT-2-LM12 (Canada) MERCON®

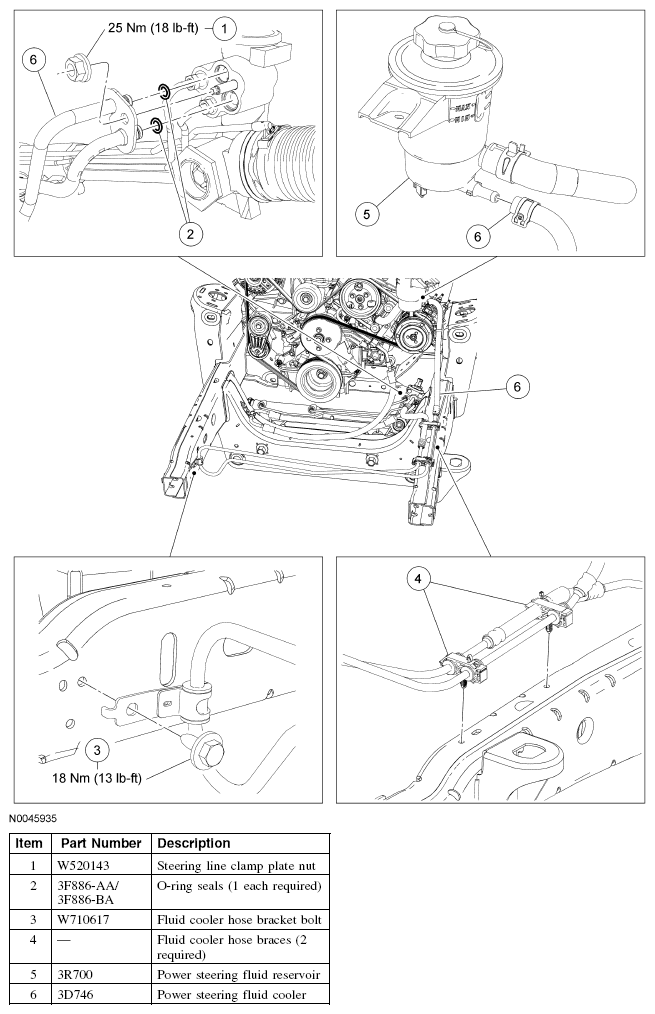

Fig 1: Power Steering Replacement Components With Torque Specifications
G04637815Courtesy of FORD MOTOR CO.
