Transfer Case: Notes

WARNING: This page is about a different variant/trim than selected.

SPECIAL TOOLS DESCRIPTION

Courtesy of FORD MOTOR CO.

Transmission Jack
077-00116

MATERIAL SPECIFICATION

Item	Specification
Motorcraft Metal Surface Cleaner ZC-21	WSE-M5B392-A

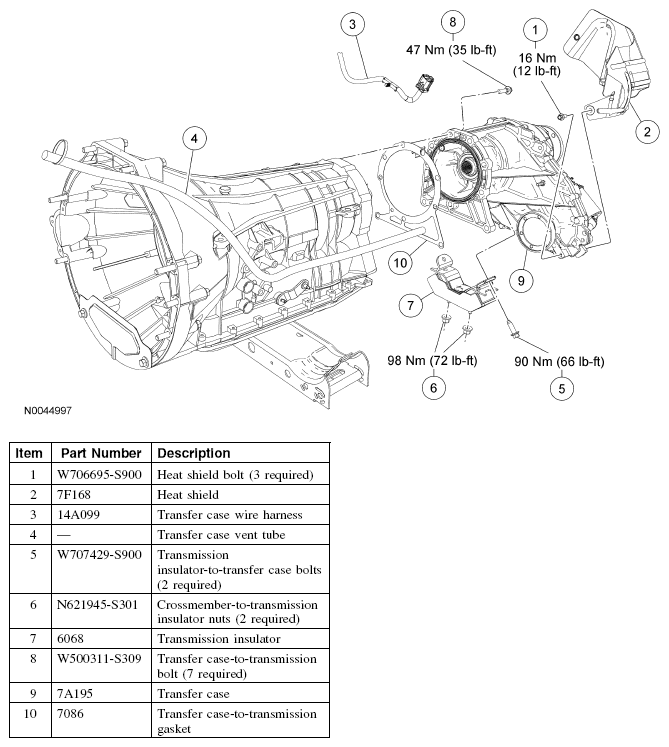

Fig 1: Transfer Case Replacement Components - 4.0L With 5R55 With Torque Specifications

Courtesy of FORD MOTOR CO.

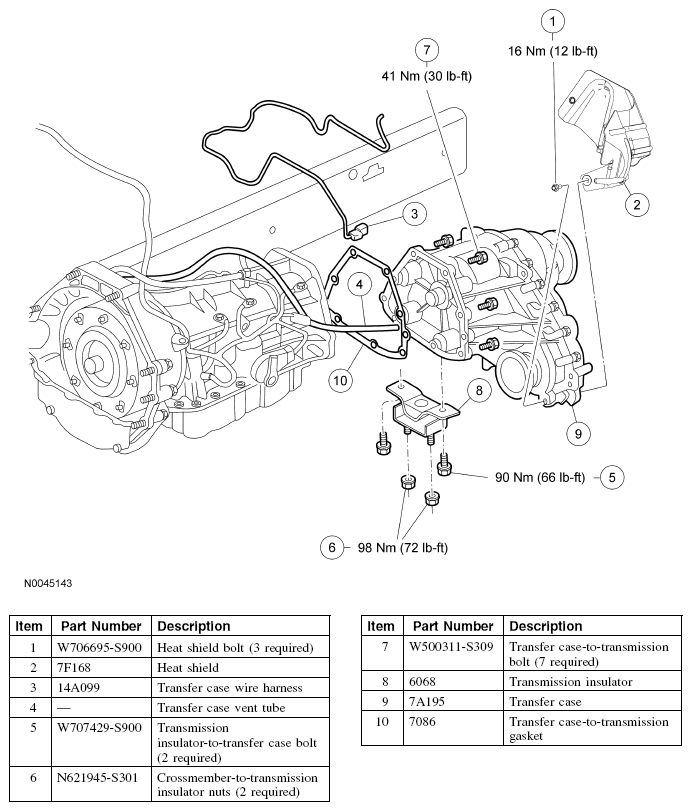

Fig 2: Transfer Case Replacement Components - 4.0L With 6R60 With Torque Specifications

Courtesy of FORD MOTOR CO.
