Coolant Crossover Manifold Assembly: Notes

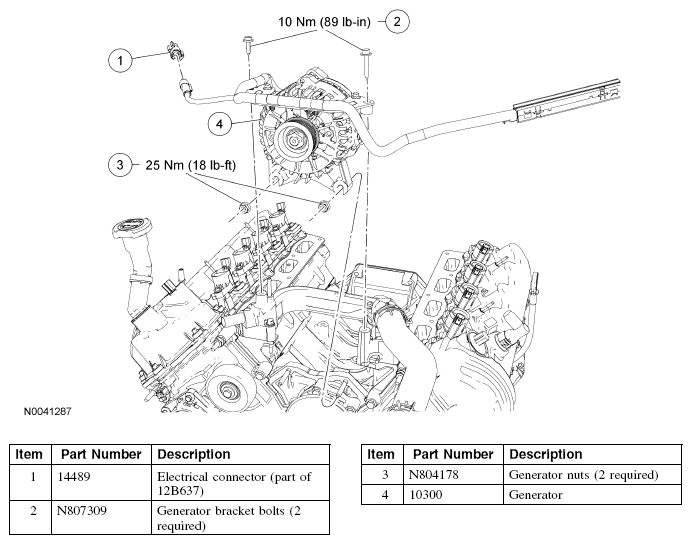

Fig 1: Coolant Crossover Manifold Assembly Replacement Components With Torque Specifications (1 Of 2)

Courtesy of FORD MOTOR CO.

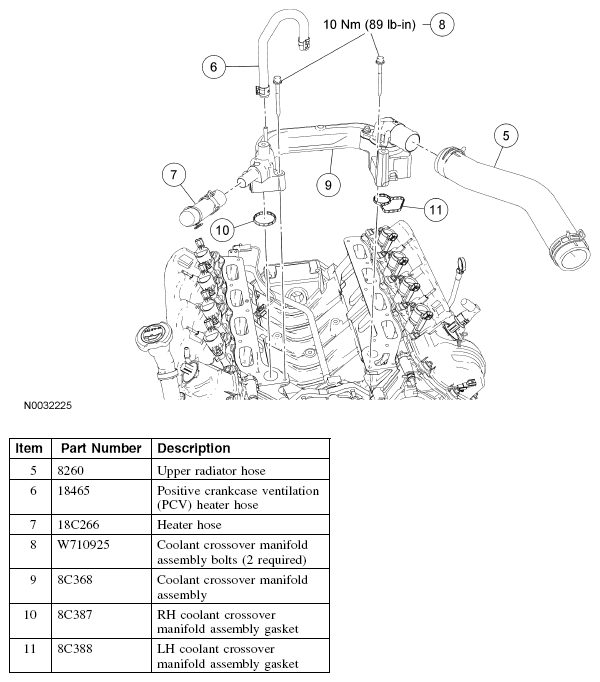

Fig 2: Coolant Crossover Manifold Assembly Replacement Components With Torque Specifications (2 Of 2)

Courtesy of FORD MOTOR CO.
