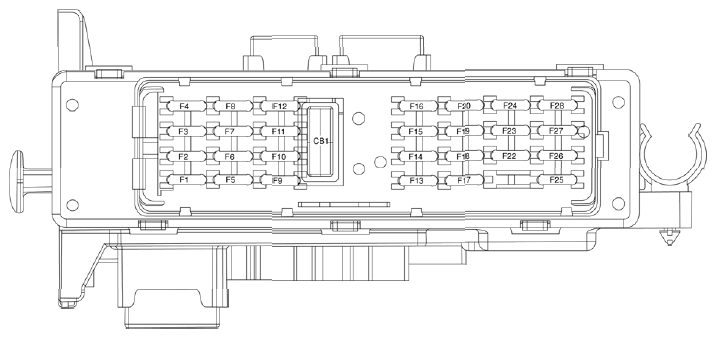

| F1 |
20 |
Roof opening panel switch (15B691), adjustable pedal, Driver seat module (14C718), Driver seat lumbar compressor motor (65500), Roof opening panel module, Power seat switch, left |
| F2 |
5 |
Smart Junction Box (SJB) |
| F3 |
20 |
Audio unit (18808), Power antenna module |
| F4 |
20 |
Data Link Connector (DLC) (14489) |
| F5 |
5 |
Roof opening panel switch (15B691) |
| F6 |
20 |
Liftgate door lock switch, Driver unlock relay, Liftgate release relay, All unlock relay, All lock relay, Headlamp leveling switch |
| F7 |
15 |
trailer stop/turn lamps |
| F8 |
15 |
Ignition switch Power, Passive Anti-Theft System (PATS) |
| F9 |
2 |
6R60 Transmission Assembly, Powertrain Control Module (PCM) (12A650), Fuel pump relay |
| F10 |
5 |
Windshield wiper relay, Ignition switch |
| F11 |
5 |
Audio unit (18808) |
| F12 |
5 |
Rear wiper motor, Trailer tow relay, battery charge, Audio unit (18808) |
| F13 |
15 |
Heated mirrors, Rear window defrost, Function selector switch assembly, Exterior rear view mirror, driver side, Exterior rear view mirror, passenger side |
| F14 |
20 |
Horn, left |
| F15 |
10 |
reverse Lamp, Electrochromatic inside mirror unit |
| F16 |
10 |
trailer reverse lamps |
| F17 |
10 |
Restraints control module, Passenger Air bag Deactivation (PAD) indicator, Occupant Classification Sensor (OCS) |
| F18 |
10 |
Parking Aid Module (PAM) (15K866), ABS control module, Four-wheel drive control module (14B466), Heated seat/windshield switch, Electronic compass (19A548), Electrochromatic inside mirror unit (17700), Blend door actuator, rear (19E616), Function selector switch assembly, rear, Traction control switch, Four-wheel drive switch |
| F19 |
15 |
not used |
| F20 |
10 |
Function selector switch assembly (19B888), Electronic Automatic Temperature Control (EATC) module, Brake shift interlock (3Z719), Temperature blend door actuator, driver (19E616) |
| F21 |
- |
not used |
| F22 |
15 |
Brake pedal position switch, left front Turn lamps, right front Turn lamps, Left and right rear Turn lamps |
| F23 |
15 |
Exterior rear view mirror switch (17B676), Instrument illumination, courtesy lamps, Homelink module |
| F24 |
2, 10 |
Instrument cluster, Autolamp/sunload sensor |
| F25 |
15 |
trailer park lamps, Trailer tow control unit |
| F26 |
15 |
Park lamps, Function selector switch assembly (19B888) |
| F27 |
15 |
Stop Lamps |
| F28 |
10 |
Function selector switch assembly (19B888), Electronic Automatic Temperature Control (EATC) module |
| CB1 |
25 |
Power window motor, driver side front (23395) |
