Disassembly And Assembly: Halfshaft: Notes

SPECIAL TOOLS REFERENCE

G04637662

Installer, Constant Velocity Joint Boot Clamp 205-343 (T95P-3514-A)

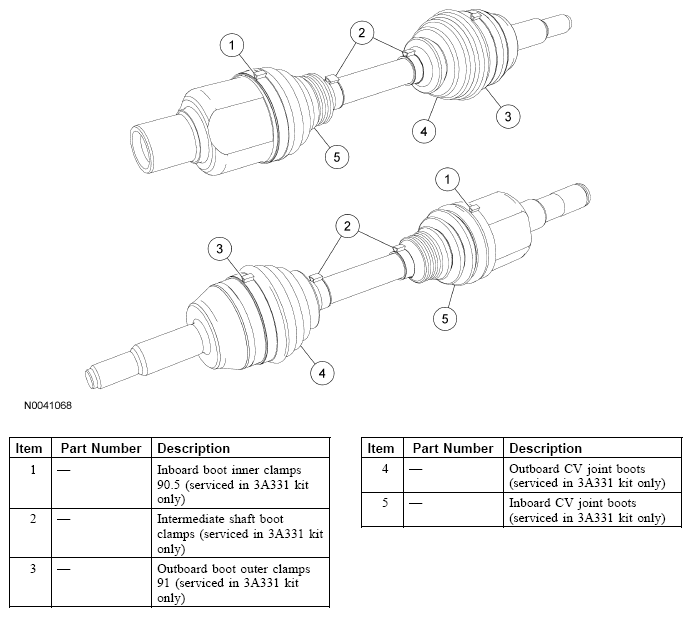

Fig 1: Identifying Halfshaft Components

G04637663

Courtesy of FORD MOTOR CO.
